Data Delivery (Broadcast)
The following call flow explains the procedure for delivering MQTT MT message broadcast.

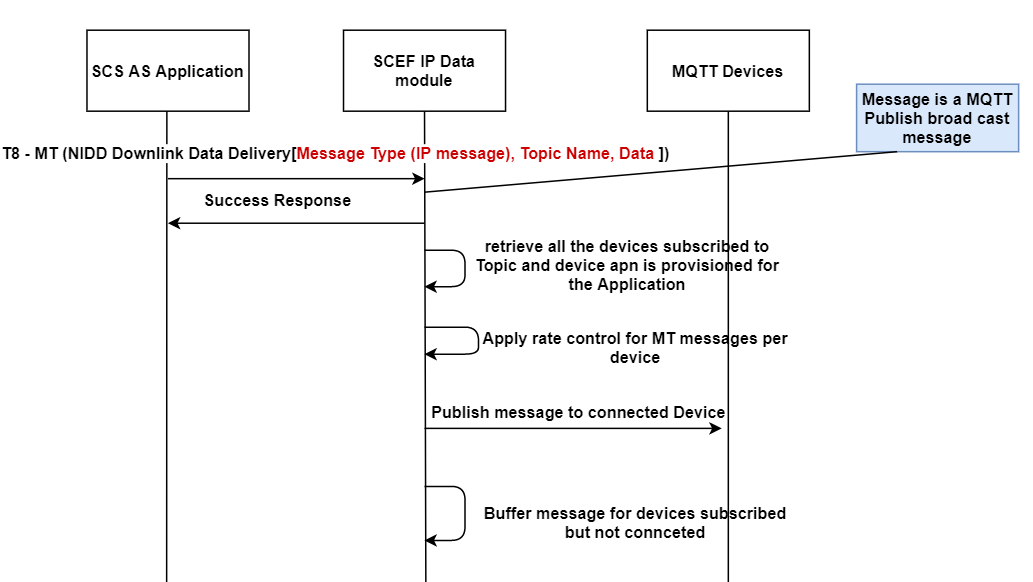

Figure 2-28 Data Delivery (Broadcast) Call Flow

Table 2-17 Data Delivery (Broadcast) Response Code
Response Code | Reason |
---|---|
200 | Successful |
500 | Processing error |
Note:
When a device reaches the allowed apn rate control limit, messages are not sent for that corresponding device until the completion of configured apn rate control period.
