Device Subscriptions

The following call flow explains the procedure followed in device subscriptions.

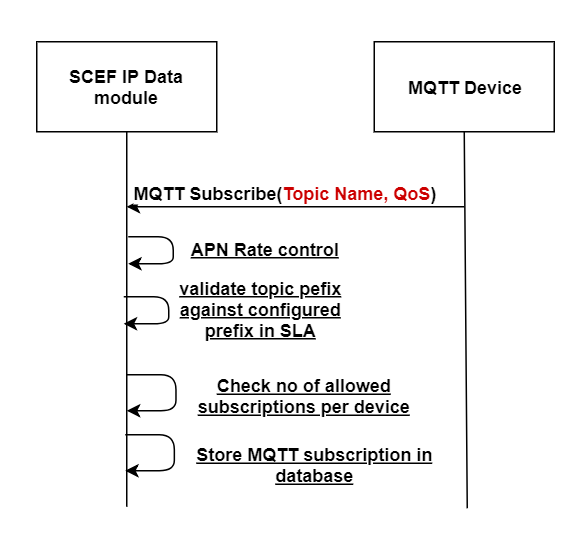

Figure 2-25 Device Subscription Call Flow

DeviceSubscription

Table 2-14 Device Subscription Response Code

Response Code Reason
MqttException (128)
  • Duplicate Subscription
  • NoOfDeviceSubscriptionAllowed Check failed
  • APN Rate control check failed
Successful Subscribe Ack Subscription is Successful
