6 IDIH Disaster Recovery

Following are the procedures for disaster recovery preparation steps for the IDIH:

Note:

If this procedure fails, contact My Oracle Support (MOS).

1. Establish an SSH session to the Oracle guest, log in as admusr.
2. Run the following command to perform a database health check:

   $ sudo /usr/TKLC/xIH/plat/bin/analyze_server.sh –i

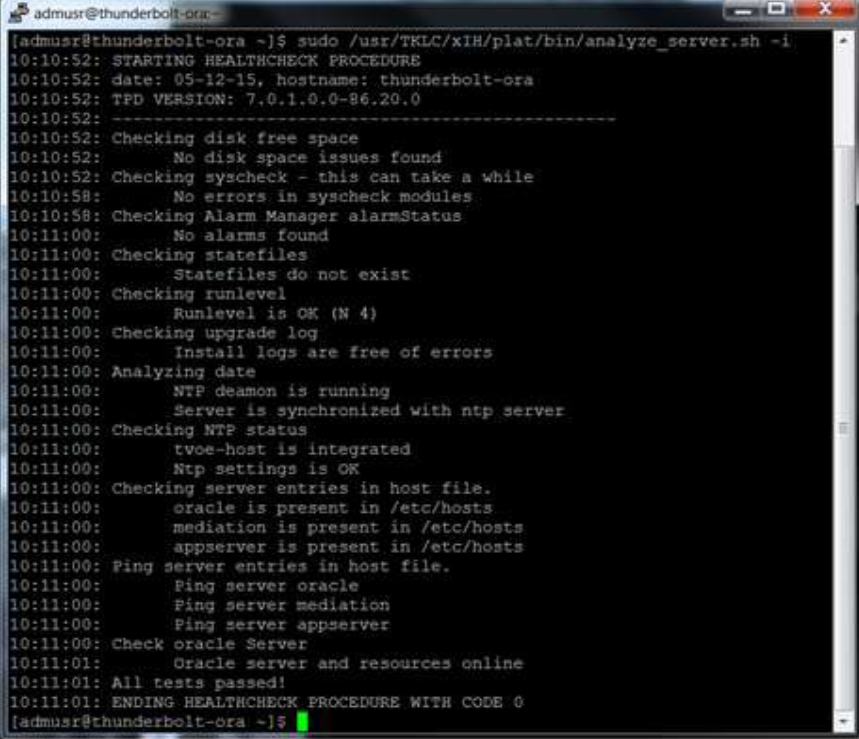

   Figure 6-1 Output









   Note:

   If this step fails, a reinstallation is required.

   For VMware based deployments:

   1. Create iDIH Virtual Machines (VMWare)
   2. Configure iDIH Virtual Machines

   For KVM/Openstack based deployments:

   1. Create iDIH Virtual Machines (KVM/Openstack)
   2. Configure iDIH Virtual Machines

   For OVM-S/OVM-M based deployments:

   1. (OVM-S/OVM-M). Import three IDIH OVA’s and create and configure a VM for each.
   2. Configure iDIH Virtual Machines

   For OL7 and KVM based deployments:

   1. Installation on OL7 and KVM
   2. Post iDIH Installation Configuration

IDIH Disaster Recovery (Re-Install Mediation and Application Servers)

Note:

If this procedure fails, contact My Oracle Support (MOS).

1. Perform the following procedure to recover the application and mediation VMs:

   For VMWare based deployments:

   Create iDIH Oracle, Mediation and Application VMs.

   For KVM / Openstack based deployments:

   Create iDIH Oracle, Mediation and Application VMs (Optional).

   For OVM-S / OVM-M based deployments:

   Import three IDIH OVA’s and create and configure a VM for each.

2. Configure iDIH VM Networks:
   1. Run the following procedure from [1] to configure the VM networks on the Application and Mediation VMs only.

      Configure iDIH VM Networks

3. Configure VMs:
   1. Run post installation scripts on iDIH VMs, step 3 to 7.
4. If integration is needed run the following procedure:
   1. Integrate iDIH into DSR
