Perform Health Check (Post-Feature Deactivation)

This procedure performs a post deactivation health check. This procedure is used to determine the health and status of the network and servers. If this procedure fails, contact My Oracle Support (MOS) for assistance.

  1. Log in to the NOAM VIP GUI. Establish a GUI session on the NOAM server by using the VIP address of the NOAM server. Open the web browser and enter the URL http://<Primary_NOAM_VIP_IP_Address>
  2. Login as the guiadmin user.

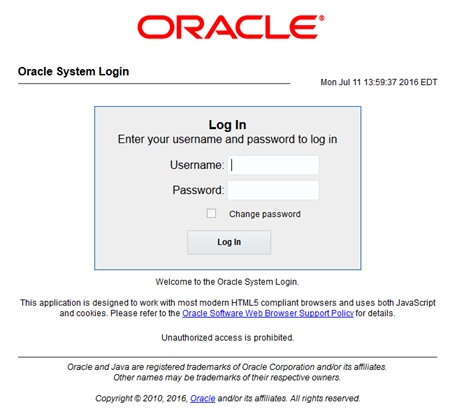

    Figure 12-20 Oracle System Login


    Oracle System Login

  3. In the NOAM VIP GUI, verify the server status. Expand Status & Manage option and click Server.

    Figure 12-21 Server Folder


    Server Folder

    Verify if all Server Status is Normal (Norm) for: Alarm (Alm), Database (DB), Replication Status, and Processes (Proc).

    Figure 12-22 Server Status


    Server Status

  4. In the NOAM VIP GUI, log current alarms. Expand Status & Manage option and click Server.

    Figure 12-23 Alarms Folder


    Alarms Folder

  5. Click Report.

    Figure 12-24 Report


    Report

  6. Save or Print this report to keep copies for future reference.

    Figure 12-25 Save or Print


    Save or Print

    Compare this alarm report with those gathered in the pre-deactivation procedures.

    Note:

    No routed service alarms should exist. These include the following alarms:

    Table 12-1 Alarm Condition

    Alarm - ID Alarm Condition
    19820 Communication Agent Routed Service Unavailable
    19821 Communication Agent Routed Service Degraded
    19822 Communication Agent Routed Service Congested
    19823 Communication Agent Routed Service Using Low-Priority Connection Group

    If this procedure fails, contact My Oracle Support (MOS) for assistance.
