Post-Feature Deactivation Health Check

Procedure 8: Perform Health Check (Post-Feature Deactivation)

This procedure is used to determine the health and status of the network and servers.

1. Log in to the NOAM VIP GUI. Establish a GUI session on the NOAM server by using the VIP address of the NOAM server. Open the web browser and enter the URL http://<Primary_NOAM_VIP_IP_Address>
2. Log in as the guiadmin user.

   Figure 6-22 Oracle System Login








3. Verify the server status. Expand Status & Manage option and click Server.

   Figure 6-23 Server Folder









   Verify all Server Status is Normal (Norm) for: Alarm (Alm), Database (DB), Replication Status, and Processes (Proc).

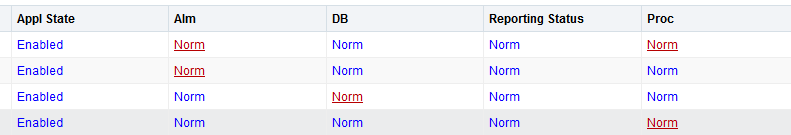

   Figure 6-24 Server Status








4. Log current alarms. Expand Alarms & Events option and click View Active

   Figure 6-25 Alarms and Events








5. Click Report.

   Figure 6-26 Report








6. Click Save or Print. Keep the report copies for future reference.

   Figure 6-27 Save or Print









   Compare this alarm report with those gathered in the pre-deactivation procedures.

   If this procedure fails, contact My Oracle Support for assistance.
