AsFile Results
Load test was conducted for ASFile service with the four node balanced cluster with varied concurrent user load. Different tests were performed with 200, 400, 600, 1,000 concurrent users. The 4 node cluster was able to scale without performance degradation up to 750 concurrent users. With thousand concurrent users six node cluster was able to perform optimally. The test was done for a duration of 1 hr with a throughput off 58 request per second.
AsFile-Policy Creation | ||||
---|---|---|---|---|
Scenario | Samples | Avg response time(msecs | 90th%le response time(msecs) | Throughput (req/sec) |
SoapRequest | 215,362 | 76 | 81 | 59.82 |
RestWrapper - XML request | 209,148 | 180 | 187 | 58.07 |
RestWrapper - Json request | 212,640 | 141 | 142 | 59.06 |
AsFile-Activity Creation | ||||
---|---|---|---|---|
Scenario | Samples | Avg response time(msecs | 90th%le response time(msecs) | Throughput (req/sec) |
SoapRequest | 214,878 | 30 | 31 | 59.68 |
RestWrapper - XML request | 208,490 | 120 | 124 | 57.91 |
RestWrapper - Json request | 212,049 | 70 | 79 | 58.9 |
Note: Please note that above mentioned Properties are suggested purely based on Transaction configuration, List of SQLs involved and hardware specifications. And it can vary depending on configuration/Dump size and hardware specifications.

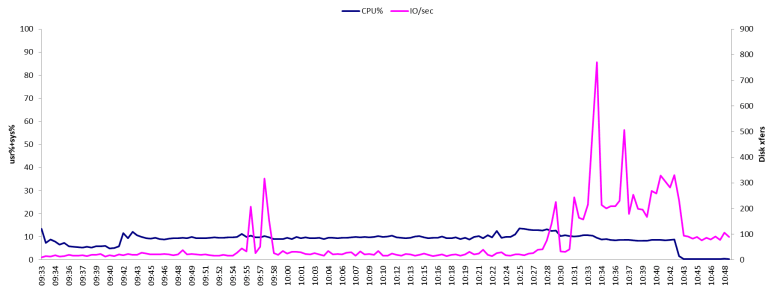

CPU Utilization of Application:

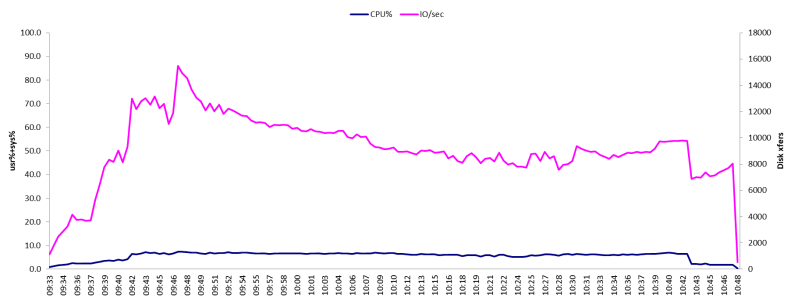

CPU Utilization of DB:
