3 Ingenico Format

The following sections describe the setup and usage of Online Credit Card Transfer for the INGENICO handling.

Prerequisite, Supported Systems, and Compatibility

This section describes the minimum requirements for using the Ingenico handling.

Prerequisite

  • OHC Ship Transf.exe

  • OHC Tools.exe version

  • Wrapper.dll version

  • SPMS Parameters

  • Web Services Installation

  • CRUFLFC.dll version

Supported Credit Card Device

Please contact your local provider on the device supported and the installation instructions.

Compatibility

SPMS version 20.3 or later. For customer operating on version below 20.3, a database upgrade to the recommended or latest version is required.

SPMS Parameters Ingenico

This section describes the parameters available to INGENICO Online Credit Card module. They are accessible from the Administration module, System Setup, Parameter function.

PAR_GROUP General

Table 3-1 PAR Group General

PAR Name PAR Value Description

Enable Signature Capture for Credit Card

0 or 1

0 - Disables Signature Capture for Credit Card.

1 - Enables Signature Capture for Credit Card.

Number of day before debarkation

2

Specifies the number of days before guest disembarkation date to swipe the exact amount for debit/credit card in online mode.

Allow payment for Declined Authorization

1

0 - Does not allow payment if authorization is declined but allow when offline.

1 - Allows payment if authorization is decline or offline.

2 - Does not allow payment if authorization is decline or offline.

Allow posting for declined authorization

1

0 - Does not allow posting if credit card authorization is declined.

1 - Allows posting.

Online Initial Auth Amount

<Amount>

Defines the initial authorization amount for all card types when card is swiped at the terminal in online mode.

Online Debit Initial Auth Amount

10,20,30,40

Defines four amounts for the debit card initial authorization amount.

Allow Settlement Voiding

1

0 - Allows voiding, no message will be prompted.

1 - Allows voiding, message will be prompted.

2 - Does not allow voiding.

Number of hour after embark date to block card

<hours>

Defines the number of hours after embarkation date to block cruise card/disable posting.

Number of Credit Card Front Digit to Display

<Value>

Defines the number of credit card front digit visible in the credit card report. Value 0 to 6.

PAR_GROUP Ingenico

Table 3-2 PAR Group Ingenico

PAR Name PAR Value Description

Enable Change Payment Department

0

0 - Disables the change of payment department after card is deactivated.

1 - Enables a change of payment department after card is deactivated.

Amount for Online top up

<Amount>

Defines the top up amount to define to send in online/offline mode.

Fixed Amount to add to top up amount

<Amount>

Defines the fixed amount to add to the top up value.

Posting amount to reject if auth declined/offline

<Amount>

Does not allow posting if posting amount are more than parameter defined amount AND authorization is decline or offline.

Credit Amount Not Allowed to Exceed

<Amount>

Specifies the credit posting amount not allowed to add if credit is greater than debit value and credit greater than new parameter value. Default value = 0.

PAR_GROUP Not Specified

Table 3-3 PAR_GROUP Not Specified

PAR Name PAR Value Description

CC Transfer Format

OHCCreditCard

Specifies the message format to be generated by Credit Card Transfer.

CCard Interface Name

<Workstation IP/Name>

Workstation IP address/name that runs OHC Ship Transfer.

System Configuration Ingenico

This section describes the various system code setups used by Ingenico Handling. The function is available in the Administration module.

Department Setup

You must configure a debit and credit department code for each credit card type accepted by the ship in order for charging and posting to take place.

Credit/Debit Card Department Code Setup

  1. Log in to the Administration module and select Financial Setup, Department setup from the drop-down list.

  2. Click the New button to create a Sub-Department code.

    Figure 3-1 Department Code Setup


    This figure shows the Department Code Setup

  3. Under the Main Department section, enter the credit/debit card information such as Payment Type, Department Code, and Description.

  4. In the Payment Type Details section:

    • Enter the first two digits of the first set of the credit card number in the Credit Card digits field.

    • Enter the Credit Card ID, for example, MC — MasterCard, VI — Visa, and others.

    • Select the corresponding Credit Card Internal ID from the drop-down list.

    • Enter the Credit Card Merchant Number provided by the Service Provider.

    • Select the Commission department from the drop-down list and update the commission rate in percentage.

    • Select the Debit Card No Commission charge if the commission is not applicable to debit card.

  5. In the Department Security access section, select the appropriate security level from the drop-down list.

  6. Select the Payment Type under Payment Department Type, either Both Credit and Debit card, Credit card or Debit card. This field determines whether the payment type is a Credit Card or Debit Card.

  7. Click OK to save.

Merchant Setup

A merchant credential is required for credit card authorizations and payments to be handled efficiently. Prior to setting up the Merchant’s credentials, the following information must be ready:

  • Pre-configured Credit Card type

  • Currency code exist in currency table

  • Merchant information from service provider

Merchant Credentials

  1. Log in to the Administration module and select Financial Setup, Credit Card Merchant Setup from the drop-down list.

  2. Right-click and select Add New to open a new screen.

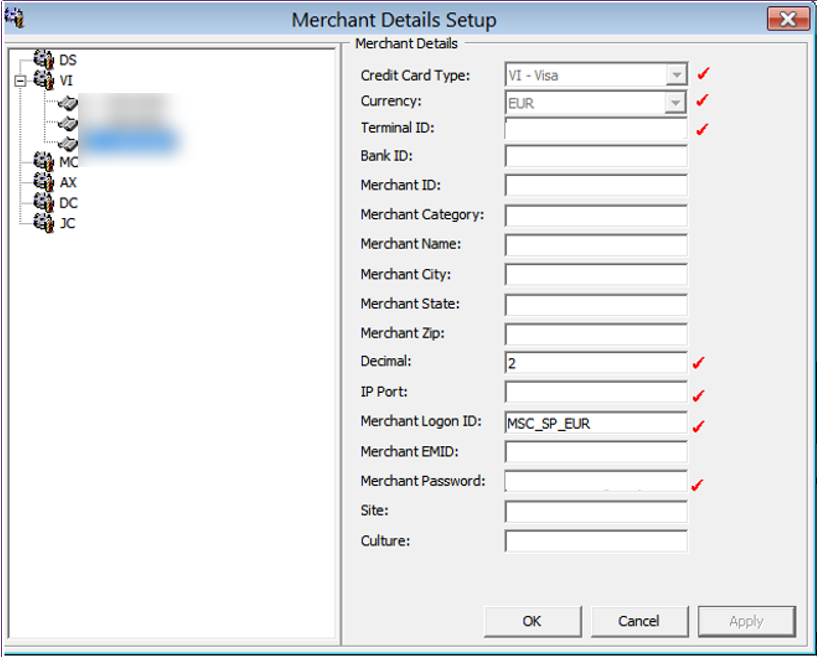

    Figure 3-2 Merchant Setup


    This figure shows the Merchant Setup

  3. Fill in the following fields correctly:

    1. Credit Card type

    2. Currency

    3. Terminal IF

    4. Decimal

    5. IP port

    6. Merchant Logon ID

    7. Merchant Password

  4. Click OK to save.

  5. Repeat steps 1 to 5 for other credit card types accepted by the Merchant.

Receipt Setup

A receipt can be generated upon payment and this requires setting up a report template. A Standard Credit Card receipt template is available in Administration module, System Setup, Report setup, Receipts group. Contact Oracle Hospitality Cruise Support if you want to configure a customized receipt format.

Credit Card BIN Import

In order for the program to recognize the correct card type (Credit/Debit) and its handling, you must import a Credit Card Bank Identification Number (BIN) file provided by ELAVON to SPMS periodically. This file contains the complete set of eligible BINs and information from the previously loaded BIN file is overwritten during the reload process.

BIN file loading

  1. Log in to the Administration module and select Financial Setup, Import Credit Card Bin file.

  2. Locate and select the latest BIN file from the folder, and click Open. For more information about the BIN format, see Sample BIN Ranges.

  3. The BIN file Information populates in the Credit Card BIN Import screen. Click the Import to save the BIN ranges into the BIN table. Table 3–4 — Card Type Category in BIN Table describes the card categories in the BIN file:

    Table 3-4 Card Type Category in BIN Table

    BIN-ISDEBIT Description

    0

    Credit Card

    1

    Debit Card

    2

    Combo Card

  4. Click Close to exit.

Transaction Services Installation

As a standard installation, a Transaction Services installation is required. To install the TransactionsServices, consult the SPMS Installation Guide.

Ingenico OHC Ship Transfer

The OHC Ship Transfer is an interface program that sends the batch authorization from SPMS to the Ingenico Payment Gateway at a scheduled time for credit card payments to be authorized.

Setting up OHC Ship Transfer

  1. Start OHC Ship Transf.exe and navigate to Settings tab.

  2. Under the Remote Server section, insert the following URLs obtained from the respective payment gateway provider in the respective field:

    • Payment gateway URL / Web service URL

    • Batch Payment gateway URL / Batch Web service URL

  3. To set an Auto Scheduler for batch authorizations to be sent daily at a scheduled time, select the Auto Scheduler and set the desire time.

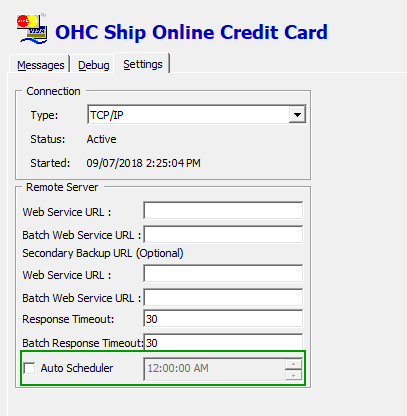

    Figure 3-3 OHC Ship Transfer Scheduler


    This figure shows the OHC Ship Transfer Scheduler

  4. This function is only applicable to the Ingenico Online Credit Card format batch authorization. For Batch Settlement, these are performed in Management/Crew, Credit Card Batch Settlement function.

  5. The above settings are saved in OHCSettings.Par under the following tag:

    Table 3-5 OHCSettings.Par

    Field Name Description

    [#ShipTransf.Connection.AutoScheduler=1#]

    Indicates whether the Auto Scheduler is turn on/off (1 = on, 0 = Off).

    [#ShipTransf.Connection.AutoScheduler Time=23:30#]

    Indicates the time set in Auto Scheduler.

    [#ShipTransf.Connection.last Date Auto Authorization=20150307000000#]

    Indicates the last sent date/time of the batch top up. The saved date/time format is YYYMMDDHHMMSS

Checking Amount Authorized in Management module

  1. Log in to the Management module and navigate to the Guest Handling screen.

  2. In the Search Panel, browse for the guest account.

  3. Navigate to the Credit Cards tab in the Guest account.

    Figure 3-4 Management Authorization View Screen


    This figure shows the Management Authorization View Screen

  4. Select the registered credit/debit card and click View Authorizations to display Initial Authorization.

    Figure 3-5 Management Initial Authorization View Screen


    This figure shows the Management Initial Authorization View Screen

Processing Credit Card Batch

The batch function sends authorization requests and settlement by batch to Ingenico for processing. This function requires parameters, Not Specified, CC Transfer Format set as “INGENICO”. These functions are only permissible to users with assigned security rights. See User Security Group for access rights for details. Both functions are available in the Management and the Crew module.

  • Management, Cashier, Credit Card Batch Authorization/ Credit Card Batch Settlement.

  • Crew, Quick Functions, Credit.

Generating Batch Authorization

The Credit Card Batch Authorization function sends authorization requests of credit/debit cards marked with ‘Online top up amount’ by batch to Ingenico through the Ship Transfer interface.

  1. Log in to the Management module.

  2. Select Credit Card Batch Authorization from the menu-item to open the Batch Authorization Handling screen. The Batch Authorization Handling screen includes four tabs.

    Table 3-6 Batch Authorization Screen

    Tab Name Description

    Outstanding Authorizations

    Authorizations request yet to be process.

    Pending Authorizations

    Authorizations request pending approval from service provider.

    Declined Authorizations

    Authorizations request declined by service provider.

    Approved Authorizations

    Authorization request approved by service provider.

  3. To process the batch, select the desire tab and click Process. A progress bar is shown on the screen indicating the batch progress.

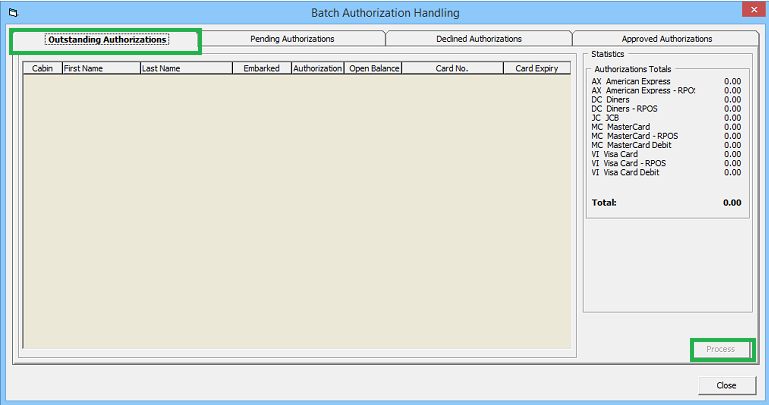

    Figure 3-6 Management, Batch Authorization — Outstanding Authorization Tab


    This figure shows the Management, Batch Authorization — Outstanding Authorization Tab

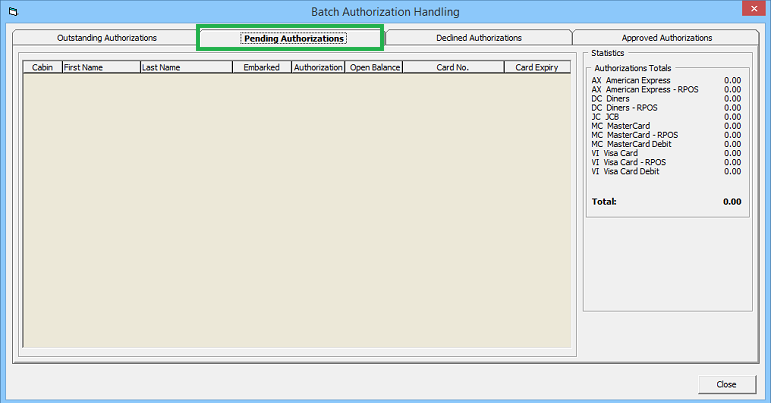

    Figure 3-7 Management, Batch Authorization — Outstanding Authorization Tab


    This figure shows the Management, Batch Authorization —Pending Authorization Tab

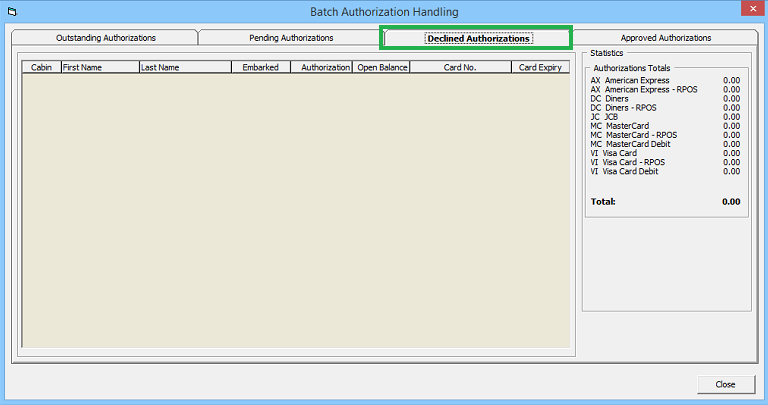

    Figure 3-8 Management, Batch Authorization — Declined Authorization Tab


    This figure shows the Management, Batch Authorization — Declined Authorization Tab

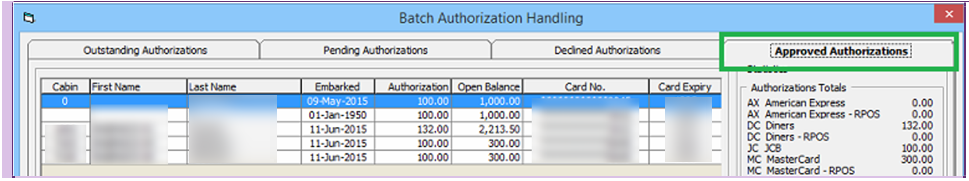

    Figure 3-9 Management, Batch Authorization — Approved Authorization Tab


    This figure shows the Management, Batch Authorization — Approved Authorization Tab

  4. Information is passed to the OHC Ship Transfer to request authorization from Ingenico. The status of the batch authorization is reflected in the OHC Ship Transfer Message tab in the following example:

Figure 3-10 OHC Ship Transfer Messages


This figure shows the OHC Ship Transfer Messages

Table 3-7 OHC Ship Transfer Message Description

Message Line Authorization Status

Line 1

Batch authorization requested to service provider.

Line 2

Batch authorization request is successful, can start sending batch authorization data.

Line 3

Batch authorization data sent successfully to service provider.

Line 4

Batch authorization data send completed, and now awaiting response from service provider.

Line 5

Batch authorization response from service provider.

Generating Batch Settlement

The Batch Settlement Handling screen includes four tabs as follows:

  • Outstanding Settlements: Settlement request yet to be process.

  • Pending Settlements: Settlement request pending approval from services provider.

  • Declined Settlements: Settlement request declined by service provider.

  • Approved Settlements: Settlement request approved by service provider.

To generate a batch settlement,

  1. From the menu-item, select Credit Card Batch Settlement to open the Batch Settlement Handling screen.

  2. Select the desire tab and click Progress. A progress bar appears on the screen indicating the batch progress.

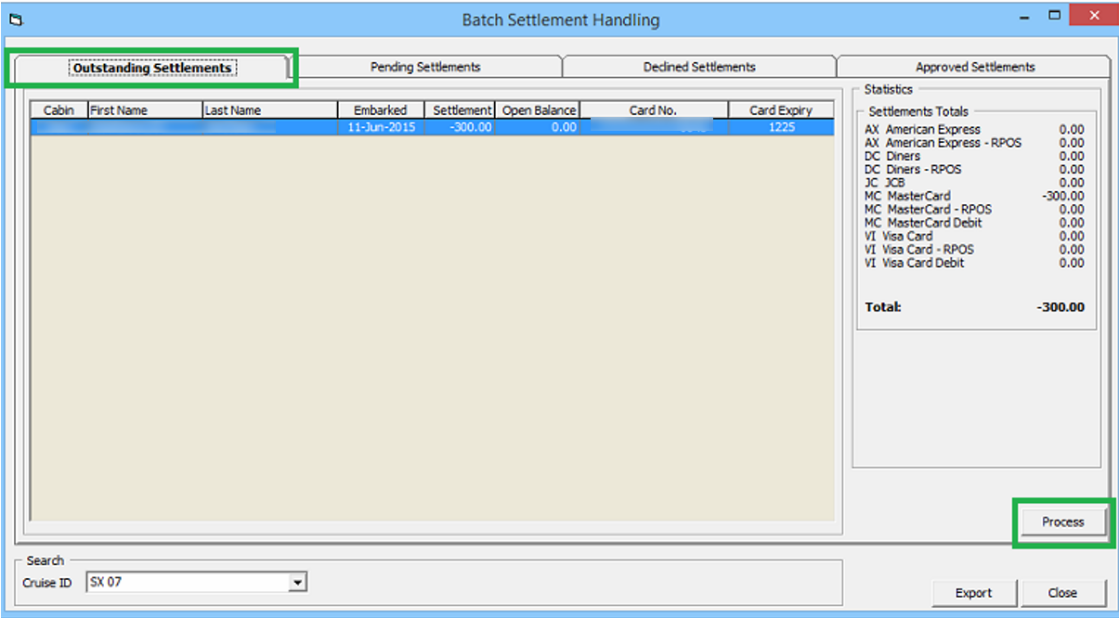

    Figure 3-11 Management, Batch Settlement — Outstanding Settlement Tab


    This figure shows the Management, Batch Settlement — Outstanding Settlement Tab

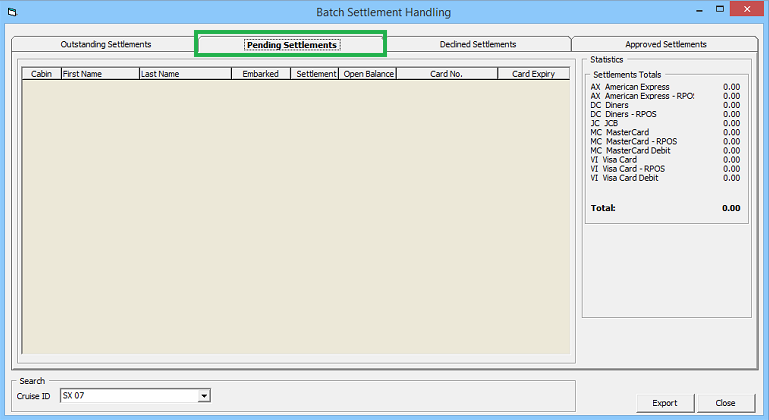

    This figure shows the Management, Batch Settlement — Pending Settlement Tab

  3. In the Declined tab, declined settlement transactions are listed. Click the Retry button to resubmit the declined settlement transaction for approval.

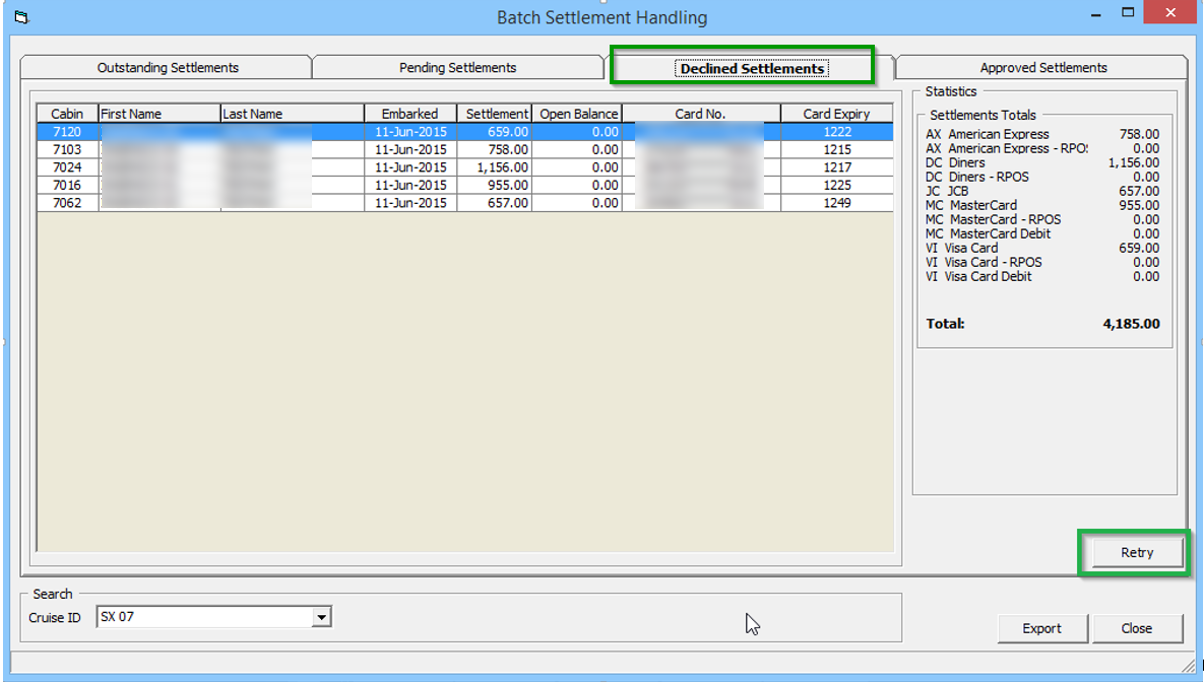

    Figure 3-12 Management, Batch Settlement — Declined Settlement Tab


    This figure shows the Declined Settlement Tab

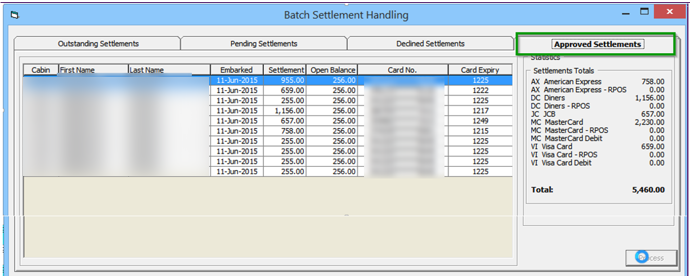

    Figure 3-13 Management, Batch Settlement — Approved Settlement Tab/Progress Bar


    This figure shows the Management, Batch Settlement — Approved Settlement Tab/Progress Bar

  4. Information is passed to Ship Transfer to request a settlement process from Ingenico. The status of the batch settlements is reflected in the Ship Transfer’s Message tab and illustrated in the following examples:

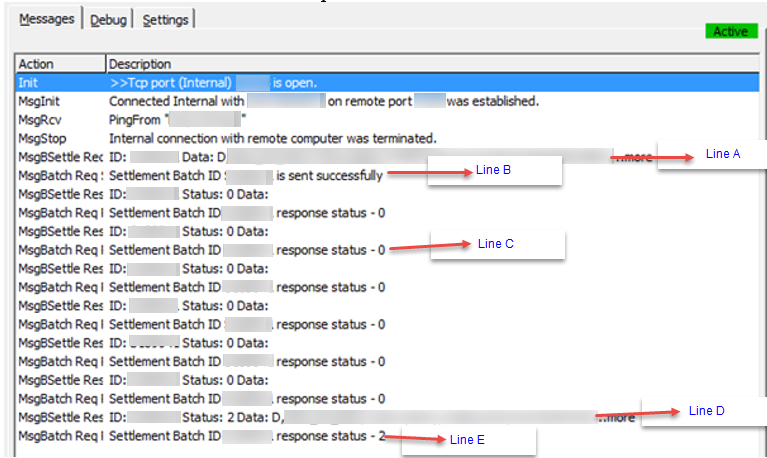

Figure 3-14 OHC Ship Transfer Message


This figure shows the OHC Ship Transfer Message

Table 3-8 OHC Ship Transfer Message Description

Message Line Authorization Status

Line A

Batch Settlement Request sent (Positive /Negative/Refund amount).

Line B

Batch Settlement sent successfully.

Line C

Await response from service provider.

Line D

Response from service provider (Positive /Negative/Refund amount).

Line E

Response updates statuses.

0 - Not Processed; 1 - Processing; 2 - Processed; 3 - Error.

Setting up a Report

In order to meet Payment Application Data Security Standard (PA-DSS) requirements, all credit card numbers printed must be masked. This is accomplished using Number of Credit Card Front Digit to Display parameter to handle the number of digits to be displayed on the report. You can only enter a value ranging from zero to six in this parameter. Any value outside this range will receive an error.

The total front digit of the card number to display in the report is subject to the value defined in theNumber of Credit Card Front Digit to Display parameter. See the following examples:

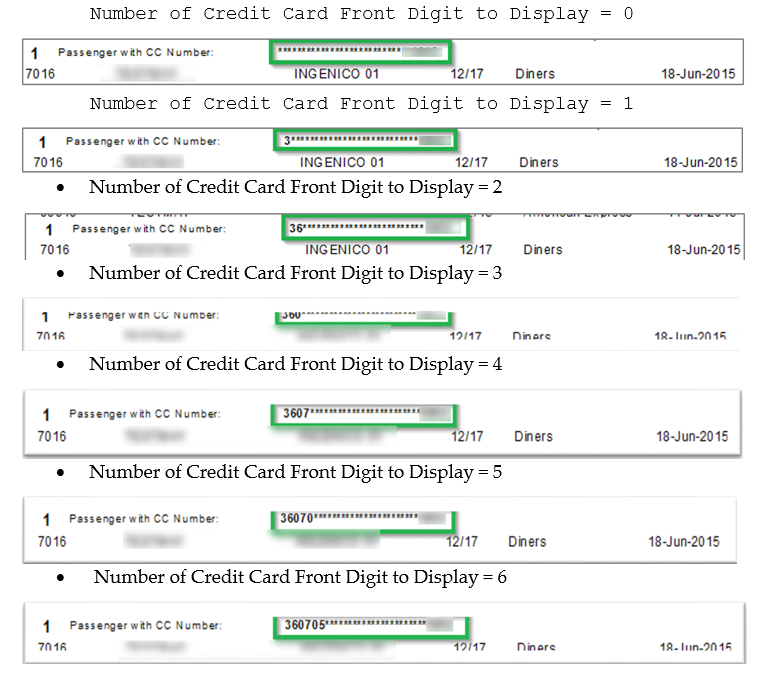

Figure 3-15 Number of Credit Card Front Digit to Display


This figure shows the Number of Credit Card Front Digit to Display

Troubleshooting Ingenico

This section describes the troubleshooting steps that will assist you in resolving the known errors with Ingenico handling.

Table 3-9 Ship Transfer Interface Known Issue and Solution

Known Issue Solution

OHC Ship Transfer program opens/closes itself

 Ensure you are using latest wrapper.dll. Version 5.0.0.001 or later.

MsgErr <HT> Logon ID is Missing

Register the Wrapper.dll with regasm.exe
MsgErr <HT> Logon ID is Missing

Ensure the Logon and Password is configured in the merchant setup.

Table 3-10 Ingenico ISC480 Device Known Issue and Solution

Known Issue Solution

Error code : [1001]

Ensure the App_code.dll or OHCSPMSData.dll, OHCSPMSBusiness.dll, OHCSPMSMobile.dll, OHCSPMSUI.dll is of the same version in current SPMS Web Server in OHCWebservices, Bin folder.

Error code : [1003]

 Ensure the Webserver IP address, port number is configured correctly in the device.

Error code : [3103]

Ensure the Web Server is connected to database defined in web.config file.

To check the connection between webserver and database.

Browsehttp://<web server hostname>/OHCWebServices/IngenicoService.asmx?op=GuestSearch

Key in the Terminal ID.

Key in guest’s board card string.

Click Invoke.

Guest information populates if the connection between webserver and database is active.

Table 3-11 Web Services Log

Parameter Description

<GuestSearch>

Ingenico device will prompt to swipe board card screen.

SPMS will search guest details from the information retrieved (board card swiped through Ingenico device) from Ingenico device; all guests in same cabin will display in Ingenico device as well.

<GetAmount>

Ingenico device will prompt to insert/swipe payment card.

SPMS will determine the card information retrieve from Ingenico device for the pre-authorization amount.

Credit card pre-authorization amount is based on parameter > ‘Online Initial Auth Amount’.

Debit card pre-authorization amount is based on parameter > ‘Online Debit Initial Auth Amount’.

<UpdateCardInfo>

Ingenico device will get the transaction status from the merchant/service provider and response to SPMS.

SPMS will insert the response into database and Authorization the status retrieves from response file (Approved/Declined).

<AddRouting>

If the transaction is approved, Ingenico device will display the other guest names of the same cabin for routing process.

SPMS will update the RES_QROUTE_ACC if routing assign in the device.

<TmlTweet>

This parameter is to keep the Ingenico device connection alive.

Additional information like cruise currency, pending transaction will be determined by this function.

<gbCardRegistration>

This parameter identifies the guest/crew/system account allowed to perform payment card registration or not.

The value for the parameter is true or false.

<gbRounting>

This parameter identifies the guest/crew/system account allowed to perform payment routing or not.

The value for the parameter is true or false.

<gbLastDay>

This parameter identifies the guest/crew/system account’s last day of the cruise.

This parameter is controlled by system parameter [Parameter > General > ‘Number of Before Disembarkation Days’]

The value for the parameter is true or false.

For example

If [Disembarkation date] - [Number of Before Disembarkation Days] = [System Date], then <gbLastDay> = true, else <gbLastDay> = false

<gbDebitRefund>

This parameter identifies the guest/crew/system account allowed to refund the balance from their invoice account.

The value for the parameter is true or false

Table 3-12 Transaction Status

Status Description

Initial Authorization

CCA_OPERATION

1

CCA_MTYPE

0 (Online initial auth), 1 (Offline initial auth).

CCA_PREVIOUS

Original pre-authorization reference ID, value retrieve from parameter ‘CC Ship’ at (CCA_GROUP= ‘Not Specified’ + sequence CNT_POS_RES).

CCA_STATUS

0 (outstanding/pending), 1 (approved), 2 (declined).

CCA_QSTATUS

0 (pending), 8 (completed).

CCA_STATUS = 0

CCA_QSTATUS = 8

It means pseudo/temporary token is received and waiting for real token after connection with merchant/service provider is resume.

Incremental Authorization

CCA_OPERATION

2

CCA_MTYPE

4 (Online incremental auth), 5 (offline incremental auth)

If CCA_MTYPE = 5

  • When parameter ‘Allow Posting For Declined Authorization’ is set to 0. For incremental authorization created during system cruise change.

  • When parameter ‘Allow Payment For Declined Authorization’ is set to 0 or 2. For incremental authorization created during pay invoice/quick billing.

CCA_FILENO

File number being assigned when create batch authorization.

CCA_FSTATUS

Batch file processing status

0 (pending), 1 (processing and waiting for response), 2 (processed done), 3 (error).

Settlement

CCT_STATUS

0 (outstanding), 1 (approved), 2 (declined)

CCT_QSTATUS

0 (pending), 2 (when ‘Process’ is clicked on OHC Management > Credit Card Batch Settlement), 8 (Completed)

CCT_FILENO

File number being assigned when create batch settlement

CCT_FSTATUS

Batch file processing status

0 (pending), 1 (processing and waiting for response), 2 (completed), 3 (error)

Direct Payment

CCA_MTYPE

6

CCA_STATUS

1 (approved), 2 (declined).

No Settlement created



Appendices

User Security Group

The following User Access Rights must be granted to users performing Batch Authorization/Settlements.

Table 3-13 User Security Group

User Group No Security Reference No Description

Management\Menu\Cashier

4596

Credit Card Batch Authorization.

Management\Menu\Cashier

4511

Credit Card Batch Settlement.

Crew\Menu\Quick Functions

4598

Credit Card Batch Authorization.

Crew\Menu\Quick Functions

4597

Credit Card Batch Settlement.

Sample BIN Ranges Ingenico

The following are sample eligible BIN ranges for Ingenico:

400626,400626,DEL,Visa Debit,16 480240,480240,DEL,Visa Debit,16

407704,407705,DEL,Visa Debit,16 484409,484410,DEL,Visa Debit,16

408367,408367,DEL,Visa Debit,16 495067,495067,DEL,Visa Debit,16

419772,419772,DEL,Visa Debit,16 495090,495094,DEL,Visa Debit,16

420672,420672,DEL,Visa Debit,16 419773,419776,ELC,Visa Electron,16

445190,445192,DEL,Visa Debit,16 424519,424519,ELC,Visa Electron,16

446200,446211,DEL,Visa Debit,16 424962,424963,ELC,Visa Electron,16

446213,446254,DEL,Visa Debit,16 444000,444000,ELC,Visa Electron,16

446257,446272,DEL,Visa Debit,16 484406,484408,ELC,Visa Electron,16

446274,446283,DEL,Visa Debit,16 484428,484455,ELC,Visa Electron,16

446286,446286,DEL,Visa Debit,16 491730,491759,ELC,Visa Electron,16

460024,460024,DEL,Visa Debit,16 499806,499806,ELC,Visa Electron,16

465830,465879,DEL,Visa Debit,16 512499,512499,MCD,MasterCard Debit,16

465901,465950,DEL,Visa Debit,16 512746,512746,MCD,MasterCard Debit,16

474503,474503,DEL,Visa Debit,16 516001,516001,MCD,MasterCard Debit,16

474551,474551,DEL,Visa Debit,16 516730,516979,MCD,MasterCard Debit,16

475110,475159,DEL,Visa Debit,16 527591,527591,MCD,MasterCard Debit,16

475183,475183,DEL,Visa Debit,16 535110,535309,MCD,MasterCard Debit,16

476220,476269,DEL,Visa Debit,16 557347,557496,MCD,MasterCard Debit,16

476340,476389,DEL,Visa Debit,16 545721,545723,MCD,MasterCard Debit,16
