Setting up Bluebeam

To set up Bluebeam in Unifier

  1. Sign into Unifier.
  2. Click the Company Workspace tab (Admin mode).
  3. From the left Navigator, click the Integration node.
  4. Click the Bluebeam sub-node.
  5. In the General tab, under Enable Integration?, select Yes. When the integration is enabled a Client ID will be displayed which will be used when configuring the integration within Bluebeam.
  6. As part of the authentication, you need to capture the URLs that will be used for Bluebeam integration by filing a service request with Oracle Support that includes the URLs of all the environments that will have the integration enabled.
  7. Click Save.

To set up Unifier in Bluebeam

  1. Sign into Bluebeam.
  2. Select Integrations.
  3. Enter the Client ID from the Bluebeam sub-node and choose Lookup.
  4. Click Save.

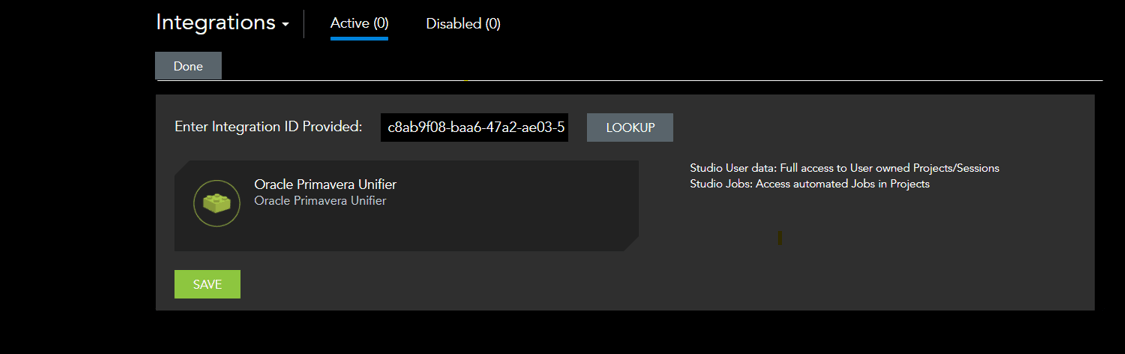

This image displays the Bluebeam integration setup window.

Note: The Unifier user must have an active Bluebeam Studio Prime subscription.


Last Published Tuesday, December 12, 2023
