FAM Navigation Tabs Structure in Unifier
The Facilities and Real Estate base product enables you to organize your portfolio of facilities and properties according to their specific hierarchy needs.
The following demonstrate a diagram and an example of the hierarchy:

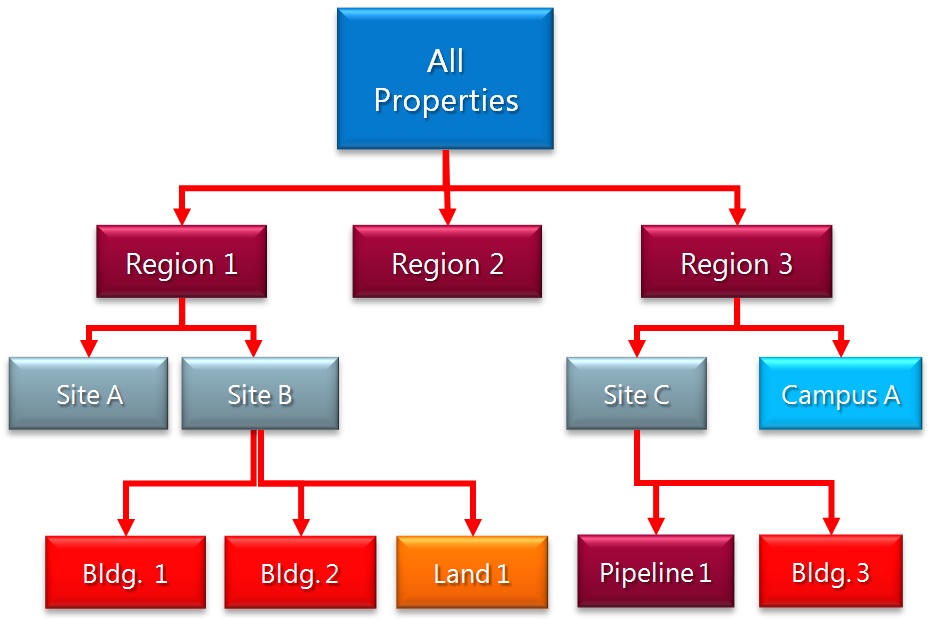

Hierarchy Diagram

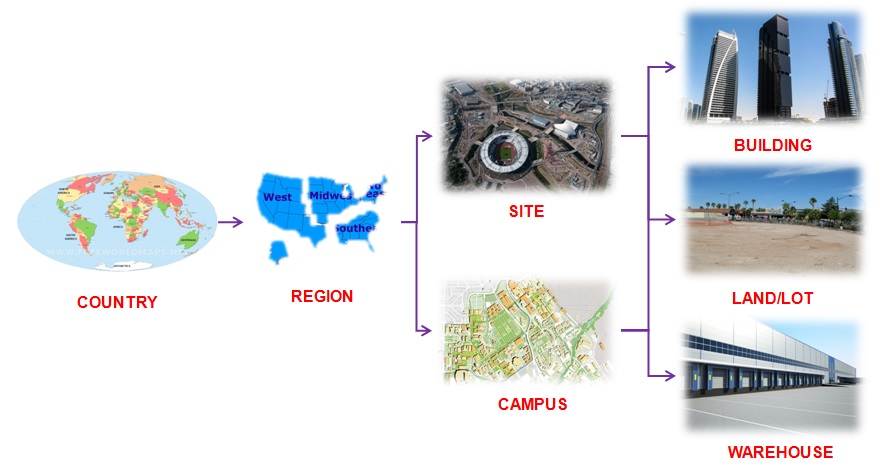

Hierarchy Example
Unifier Structure for FAM
The structure for Facilities and Real Estate consists of the following parts according to specific hierarchy needs:
- All Properties
- Regions
- Sites
- Buildings
- Linear Assets
- Land
Notes:
- Land and Linear Assets are pre-designed Shell types that you can use to create Shells.
- Land and Linear Assets are at the same level as Buildings, in the hierarchy.
- When you create a Land or Linear Assets Shell, the system will place the Shell under Sites type Shells, similar to Buildings.
- With the exception of the All Properties tab, all other tabs must be created by you. You have the option to name the tabs according to your business needs.As it will be explained later in this guide, Regions, Sites, and Buildings are Shell types.
- The system displays the Tasks, Notifications, and Drafts nodes, in the respective Company Workspace and Project/Shell, based on the deployment of your user mode navigators.
- Refer to the Unifier General User Guide for more information about using the Standard View of the Tasks, Company, and Project/Shell logs.
Each part has the following components:
- List of nodes, modules, or sub-modules
- List of BPs used for each module, if applicable
Note: The structure for Facilities and Real Estate also includes Home and Company Workspace, which are discussed in the following sections.
In This Section
