17.1 Perform Health Check Post-Feature Deactivation

This procedure performs a health check to determine the health and status of the DSR network and servers.

Log in to the NOAM VIP GUI and establish a GUI session on the NOAM server by using the VIP address of the NOAM server.

1. Open the web browser and enter the URL, http://<Primary_NOAM_VIP_IP_Address>
2. Log in as the guiadmin user.

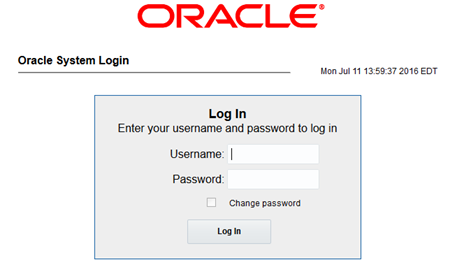

   Figure 17-1 Oracle System Log in








3. Verify the Server Status. Expand Status & Manage and click Server.

   Figure 17-2 Status and Manage








4. Verify all Server Status is Normal (Norm) for Alarm (Alm), Database (DB), Reporting Status, and Processes (Proc).

   Figure 17-3 Alarms









   Do not proceed to feature activation if any of the above states are not Norm. If any of these are not Norm, corrective action should be taken to restore the non-Norm status to Norm before proceeding with the feature activation.

   If the Alarm (Alm) status is not Norm but only Minor alarms are present, it is acceptable to proceed with the feature activation. If there are Major or Critical alarms present, these alarms should be analyzed before proceeding with the feature activation. The activation may be able to proceed in the presence of certain Major or Critical alarms.

5. In the NOAM VIP GUI, verify the server configuration. Expand the option Configuration and click Server Groups.

   Figure 17-4 Server Groups









   Verify the configuration data is correct for your network.

6. In the NOAM VIP GUI, log the current alarms. Expand the Alarms & Events option and click View Active

   Figure 17-5 View Active Alarms








7. Click Report

   Figure 17-6 Report








8. Verify if the configuration data is correct for your network. Click Save or Print to keep report copies for future reference.

   Figure 17-7 Save or Print








9. In the NOAM VIP GUI, log the alarm history. Expand Alarms & Events option and click View History.
10. Click Report.

    Figure 17-8 Report








11. Verify if the configuration data is correct for your network. Click Save or Print to keep report copies for future reference.

    Figure 17-9 Save or Print









    If this procedure fails, contact My Oracle Support (MOS) for assistance.
