A.2 Inhibit A and B Level Replication on C-Level Servers

Perform the following procedure to inhibit A and B level replication on all C Level servers:

Note:

If this procedure fails, contact My Oracle Support (MOS).
  1. Log in to the Active NOAM server through SSH as admusr user.

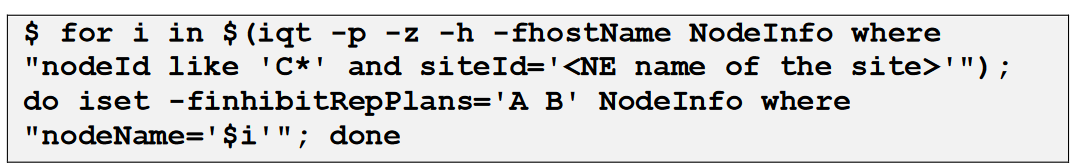

  2. Run the following command manually:

    Figure -2 Command


    Command

    Note:

    To find the site's NE name, go into the Active NOAM GUI and navigate to Configuration and Server Groups tab.

    For more information, see the screenshot below:

    Figure -3 Server groups


    Server groups

  3. After running above steps to un-inhibit replication on MP(s), no alarms on GUI would be raised informing that replication on MP is disabled.

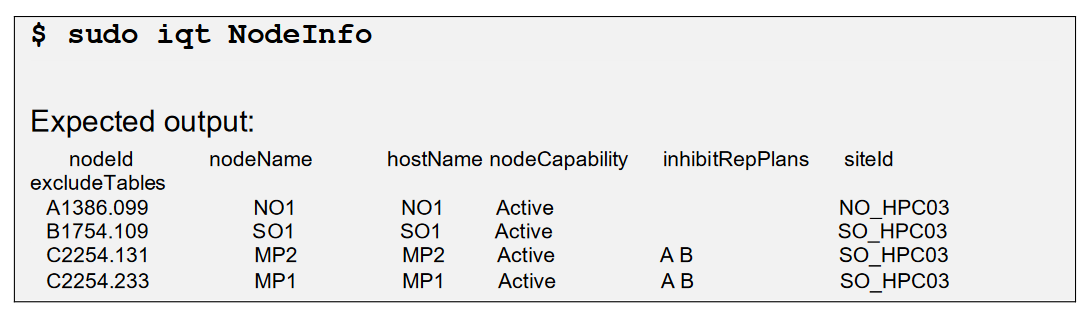

    Verification of replication un-inhibition on MPs can be done by analyzing NodeInfo output. InhibitRepPlans field for all the MP servers for the selected site example: Site SO_HPC03 shall be set as empty.

    Perform the following command manually:

    Figure -4 Command


    Command
