3.3.2.2 ProTrace Full Decoding Panel

When the user selects a payload event in the Events Panel or a balloon from the Event Diagram, the corresponding message is displayed fully decoded in the Full Decoding Panel. This view explains every byte of the selected message.

The ProTrace Full Decoding Panel is further divided into two panels. The first panel shows the payload bytes of the messages. The second panel displays the Message Header and all AVPs decoded into a readable format. It shows every field of the header and AVP. Each field of the message header and AVP is displayed on separate lines.

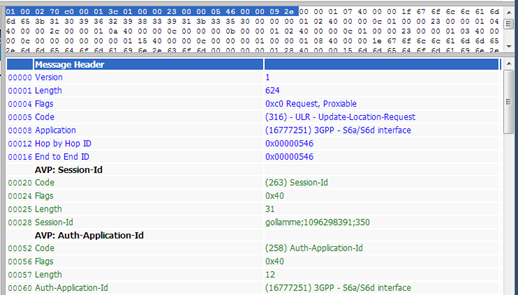

Figure 3-10 ProTrace Full Decoding Panel

The detailed decoding list has certain columns:

• Offset (An offset address of the field from the beginning of the payload. The Version field of the Message Header has an offset 0)
• AVP/Field Name
• Value and description (Value and possible description)

  Table 3-3 ProTrace Full Decoding Panel

  AVP Type	Display
  Integer32/Unsigned32 Integer64/Unsigned64	Numeric value
  Enumerated	Numeric value + description of the value if known
  Grouped	Names of all child AVPs
  UTF8String	UTF string from the bytes
  OctetString	If all bytes are displayable (codes are from 32 to 128 ASCII) then it is displayed as UTF string, otherwise the hex decode is displayed
  IPAddress	D.D.D.D or XXXX:XXXX:…:XXXX:XXXX depending on IP version (IPv4 or IPv6) (where D is decimal digit and X hexadecimal digit)
  AppId	Application Id and Name if known
  VendorId	Vendor Id and Name if known
