6.3.1 Post-Feature Deactivation Health Check

Perform Health Check (Post-Feature Deactivation)

This procedure is used to determine the health and status of the network and servers.

  1. Log in to the NOAM VIP GUI. Establish a GUI session on the NOAM server by using the VIP address of the NOAM server. Open the web browser and enter the URL http://<Primary_NOAM_VIP_IP_Address>
  2. Log in as the guiadmin user.

    Figure 6-22 Oracle System Login


    Oracle System Login

  3. Verify the server status. Expand Status & Manage folder and click Server.

    Figure 6-23 Server Folder


    Server Folder

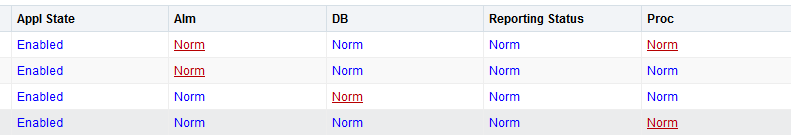

    Verify all Server Status is Normal (Norm) for: Alarm (Alm), Database (DB), Replication Status, and Processes (Proc).

    Figure 6-24 Server Status


    Server status

  4. Log current alarms. Expand Alarms & Events folder and click View Active

    Figure 6-25 Alarms and Events


    Alarms and Events

  5. Click Report.

    Figure 6-26 Report


    Report

  6. Click Save or Print. Keep the report copies for future reference.

    Figure 6-27 Save or Print


    Save or Print

    Compare this alarm report with those gathered in the pre-deactivation procedures.

    If this procedure fails, contact My Oracle Support for assistance.
