3.17 Configure Active UDR NOAM for SoR application

  1. From the main Menu, Navigate to UDR, then select Subscriber Entity Configuration, then select Transparent Entity, select Base Field Set, and click Edit.
  2. Under SprProfileBFS add these fields for SoR Application.

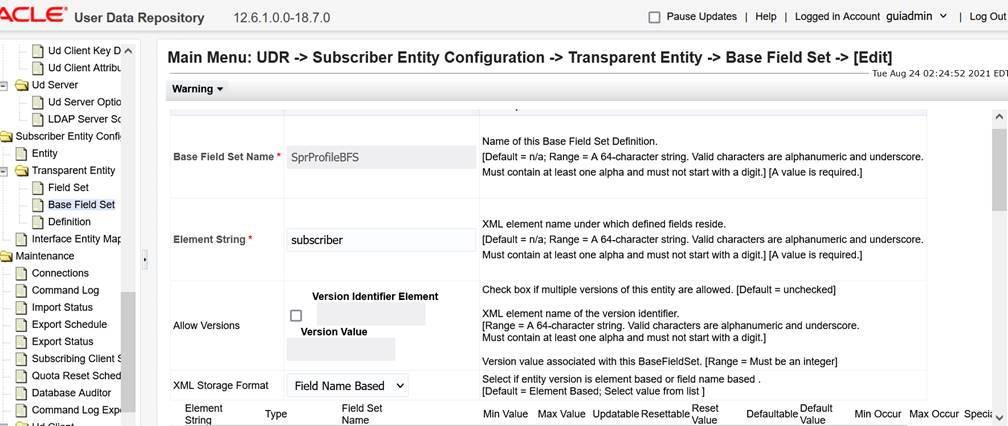

    Figure 3-1 SprProfileBFS screen


    SprProfileBFS screen

    Note:

    If DSA application is activated on that setup, the following fields are present.

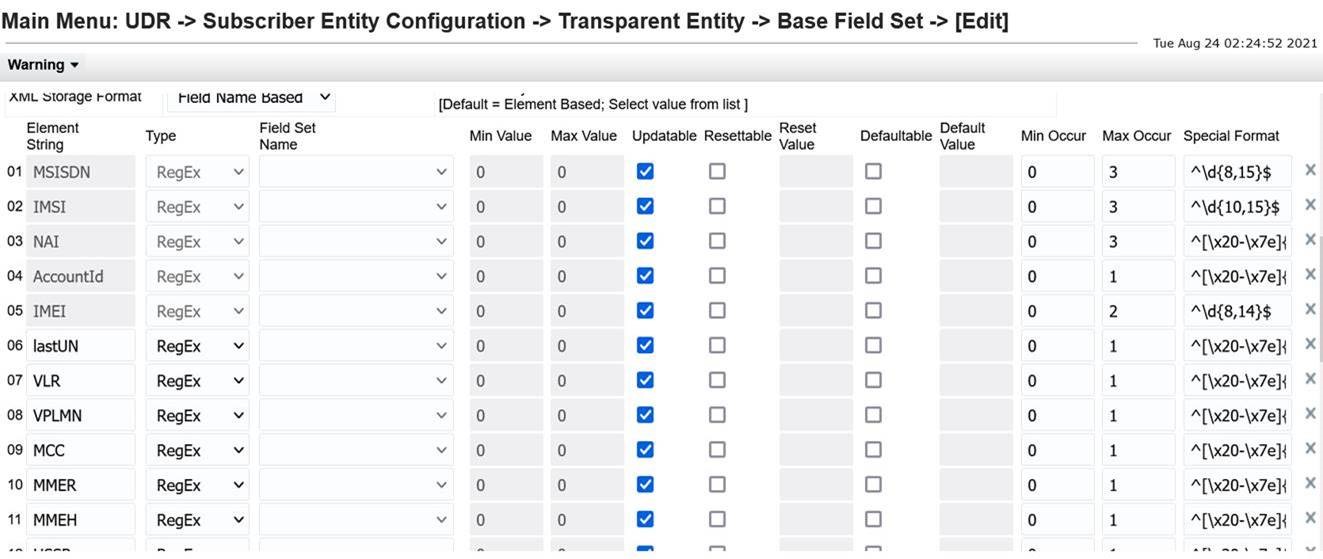

    Figure 3-2 SprProfileBFS field screen


    SprProfileBFS field screen

  3. Configure the following fields.
    SoR Specific Fields :
    MSISDN – key

    no_total_rej: value contains digit : Reg Exp : ^\d+$
    no_mno_rej: value contains digit : Reg Exp : ^\d+$
    acc_mno_id: value contains string “ acc mno id”  : ^[\x20-\x7e]{0,255}$
    rej_mno_id : value contains string “rej mno id”  : ^[\x20-\x7e]{0,255}$

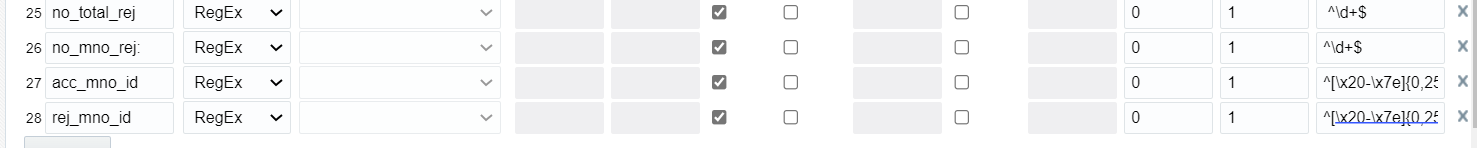

    Figure 3-3 Configuration fields


    Configuration fields
