System Activity Sheet Log Default

The Activity Sheets log captures project scheduling data coming from P6 or Oracle Primavera Cloud. A single System Activity Sheet, in Unifier, will be mapped to multiple project schedule sheets, which are created by way of integration.

When you open the System Activity Sheet that is created by way of integration with P6 or Oracle Primavera Cloud, it lists all the activities in the Activity Sheet log. The log lists all activities in a flat grid.

To access the System Activity Sheet:

Go to the project/shell tab and switch to User mode.
In the left Navigator, select Activity Manager, and then select Activity Sheets to access the Activity Sheets log.
In the log, select the System Activity Sheet, click the gear menu (  ), and then select Open.

The log (named Activity Sheet in the image shown below) enables you to set up the log to show either the baseline project view, or the current project view (from the upper-right corner of the log). The link to view the baseline project is displayed next to the source project (upper-right), where you can select the link to view the baseline data for the selected source project. If there are no baselines received for the selected source project, this link is not displayed.

The log has the following toolbar options:

Actions
View
The Default view shown in the image, below. You can use the View toolbar option to:
- Create New View
- Manage Views
Edit View
Refresh
Print
Find on Page
Menu Options
Use this toolbar option to export activities or assignments, import CBS code for activities or assignments, or color the rows.
Gantt

The log has the following fixed columns:

Sequence No.
Activity ID
Activity Name

All the other columns seen in the grid are in the same order as showing the activity attribute form. The column labels are derived from the activity attribute form.

When you select an activity in the log, the following properties tabs will display:

General
Assignments
Activity Spread
Audit Log

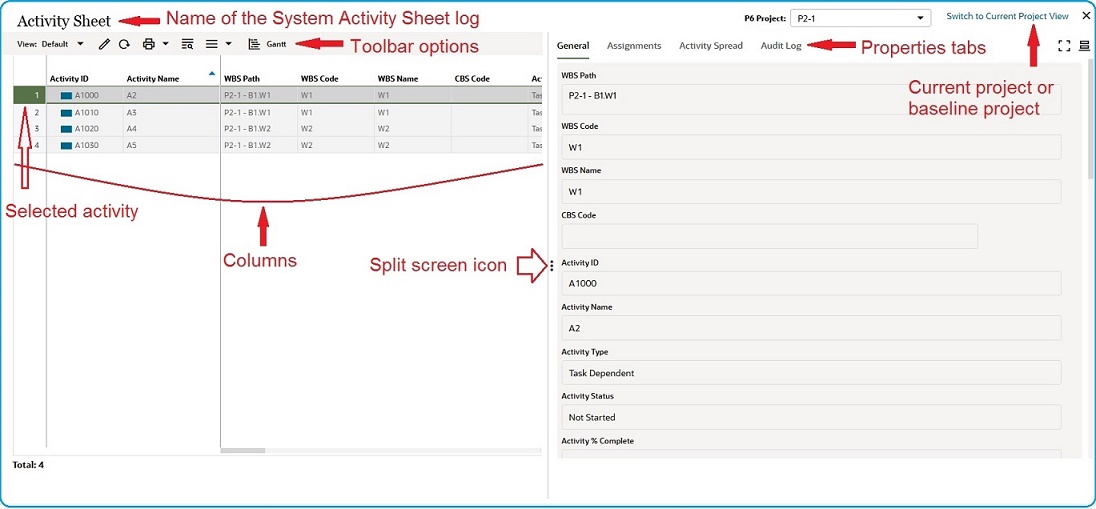

This image displays the various parts of the activity sheet.

The following topics explain the elements of the log.
