Prerequisites for Test Case Execution

6.1 Prerequisites for Test Case Execution

Activation Manually (As done in release 9.0.1 and before Excluding DSA)

This section provides information about the prerequisites that must be met in the following sequence before running the test cases:

Ensure no hyphen is present in the stack name of NOAM and SOAM while deploying the VDSR stack through VNFM.
Location of the Test Cases
- The Cust-Roaming-Suite directory path is /var/lib/jenkins/workspace/Regression/Cust-Roaming-Suite.
- The Cust-Core-DSR directory path is /var/lib/jenkins/workspace/Regression/Cust-Core-DSR.
- The New-Features are located in /var/lib/jenkins/workspace/New-Features
- The Performance test cases are located in /var/lib/jenkins/workspace/Performance/Radius_Traffic
- All Cleanup pipeline test cases are located in /var/lib/jenkins/workspace/Cleanup/Cust-Cleanup-DSR
- All DSA stateless and stateful pipeline test cases are located in the file /var/lib/jenkins/workspace/DSA. The only option for all DSA stateless and stateful pipeline is to run the full suite.
- All vSTP test cases are divided into four different suites:
  /var/lib/jenkins/workspace/vSTP_Regression/behave_test_framework/vSTP-Suite1/

  /var/lib/jenkins/workspace/vSTP_Regression/behave_test_framework/Cust-vSTP-Suite2/

  /var/lib/jenkins/workspace/vSTP_Regression/behave_test_framework/Cust-vSTP-Suite3/

  /var/lib/jenkins/workspace/vSTP_Regression/behave_test_framework/Cust-vSTP-Suite4/

SUT Requirements

Table 6-1 DSR and SDS SUT Details

Server	Quantity
DSR SUT
DSR NOAM Active	1
DSR NOAM Standby	1
DSR Signaling SOAM Active	1
DSR Signaling SOAM Standby	1
DA-MP	2
IPFE	2
SDS SUT
SDS NOAM Active	1
SDS NOAM Standby	1
Query Server	1
SDS Signaling SOAM Active	1
SDS Signaling SOAM Standby	1
DP Server	1

Table 6-2 vSTP SUT Details

Server	Quantity
vSTP SUT
vSTP NOAM Active	1
vSTP NOAM Standby	1
vSTP Signaling SOAM Active	1
vSTP Signaling SOAM Standby	1
MP	2

Note:

When the SUT is created using VNFM, ensure that Mediation, FABR, and RBAR features are enabled.

Update SUT Information in ATS

Following are the mandatory steps for Cleanup, New-Features, Performance, Regression, VDSR-HealthCheck suites:

Update /home/cloud-user/Verizon-drop1/dsr-atsV2/dut.yaml with the SUT details. The same will be automatically copied to the required location when the execution starts from Jenkins.

Update the dut.yaml file by referring to the following file:

DSRVIP:
 - name: DSRNOVIP
    IP: 10.75.191.136
  - name: DSRSOVIP
    IP: 10.75.191.222

    #Pick the DSR XMI/XSI IPv6/ipv4 addresses from Main Menu: Configuration -> Networking -> Devices GUI screen

    SIGNALING_IPs:
      - IP: 10.196.14.175
        type: LocalIp
      - IP: 10.196.15.170
        type: LocalIp
      - IP: 10.196.14.124
        type: IpfeTsa
      - IP: 10.196.14.124
        type: IpfeTsa
    ipfeInitiatorDampIp:
      - IP: 10.196.14.175

    MP_XMI:

      - IP: 10.75.191.133
        type: LocalIp
      - IP: 10.75.191.115
        type: LocalIp

    MP_IMI:
      - IP: 192.167.1.125
        type: LocalIp
      - IP: 192.167.1.203
        type: LocalIp

# If DSR ips are ipv6, entire dut file should be updated with ipv6 ips.
# If Ipv6 SDS is not available, make sure to comment each parameter in SDS or remove ipv4
  ips from yaml file.

    SDSVIP:

    - name: SDSNOVIP
    IP: 10.75.191.130
    - name: SDSSOVIP
    IP: 10.75.191.45
    - name: SDSQS
    IP: 10.75.191.168

    SDS_IMI:
    - name: SDP00imi
      IP: 192.167.1.4
    - name: SDP01imi
      IP: 192.167.1.108

#DSR/SDS NOAM host and SOAM host IPs should be VIPs.
#If host IPs are in IPv6 format, IP address should be enclosed with [].

    UI_data:
  - name: UIData
    PassWordUI: ########
    UserNameUI: ########
    UDR: https://10.75.157.242
    noamHost: http://10.75.191.136
    soamHost: http://10.75.191.222
    StandBysoamHost: http://10.75.191.33
    StandBynoamHost: http://10.75.191.92
    sdsnoamHost: http://10.75.191.130
    sdssoamHost: http://10.75.191.45
    StandBysdssoamHost: http://10.75.191.85
    StandBysdsnoamHost: http://10.75.191.85

Update /home/cloud-user/Verizon-drop1/dsr-atsV2/auth.yaml. The same will be automatically copied to the required location when the execution starts from Jenkins. Server credentials, such as username and password, displayed in the following image can be updated if required.
Verify the following command to check if the jenkins is running:
```
ps -eaf | grep jenkins
```
Output:

Figure 6-1 Output
If not, then run the following command:
```
./jenkins_start.sh
```
The rerun functionality in the Roaming suite can be changed by updating the following values in dut.yaml file:
- RERUN_COUNT: 1
- SDS_ENABLE: N

Following are mandatory tasks for vSTP-Regression suite:

Update /home/cloud-user/Verizon-drop1/vSTP-ats/vstp_signalling_ips.yaml with the SUT details for vSTP test cases. The same will be automatically copied to the required location when the execution starts from Jenkins. Edit the vstp_signalling_ips.yaml file. Update the vstp_signalling_ips.yaml file by referring to the following file:

VSTP_SIGNALLING_IP:
# MP XSI IP on which traffic is to be run
  - name: XSI1
    IP: 121.131.152.209
MEAT_SIGNALLING_IP:
# MEAT XSI IP from which traffic is to be run
  - name: meat1
    IP: 121.131.152.207
ACTIVE_SO_IPS:
#Current active SO XMI IP
  - name: so_sg1
    IP : 10.75.162.138
  - name: so_sg2
    IP : 10.75.162.245
ACTIVE_NO_IP:
#Current active NO XMI IP
    IP: 10.75.162.199
VSTP_TPCs:
#TPC not to be changed to be kept as such
  - vstp_tpc_itui: 3-45-4
    vstp_tpc_itun: '8734'
    vstp_tpc_ansi: 5-44-8
# XMI IP of meat machine from which traffic is to run
MEAT_IP: 10.75.162.228
UDR:
#UDR IP for future use
  - name: udr1
    IP: 10.75.218.250
NUM_MP_PER_SITE: 2
ALL_SITE_XSI1_IP:
# Name and XMI IP of all MP's present
  - name: so1mp1
    IP: 121.131.152.209
  - name: so1mp2
    IP: 121.131.152.140

Update /home/cloud-user/Verizon-drop1/vSTP-ats/passwords/auth.yaml. The same will be automatically copied to the required location when the execution starts from Jenkins. Server credentials, such as username and password, displayed in the following image can be updated if required.
Verify using the command:
```
ps -eaf | grep jenkins
```
Output:

Figure 6-2 Output
If not, then run the command:
```
./jenkins_start.sh
```
Disable firewall from an active SOAM of vSTP from the path shown in below figure.
To access the MPs from the ATS machine, you need to run the VSTP suite run, the following command for all MPs. <stp ip> to be replaced by XMI IP of one MP at a time:
```
cat ~/.ssh/id_rsa.pub | ssh admusr@<stp ip> "mkdir -p ~/.ssh && chmod 700 ~/.ssh && cat >> ~/.ssh/authorized_keys"
```

Enabling the Feature on SUT

Following is a list of the Suites in ATS 9.0.2 onwards and their respective mandatory DSR features that are required to be activated:

Table 6-3 list of the suites in ATS 9.0.2

Suit Name	DSR’s Features Required to be activated
Regression	Custom Roaming RBAR, Mediation Custom- Core FABR, Mediation, RBAR
New -Features	RSA, RBAR
DSA	DCA
Performance	FABR

Activation through automation

Before starting the execution of any test suites, it's essential to activate RBAR, FABR, and Mediation. The activation process for these features should be carried out through the Regression Suite. You can either choose the All option as shown below or, you can choose to run each Feature (RBAR, FABR, and Mediation) individually.

Figure 6-3 Choosing a suite

Figure 6-4 Activation of Applications

Location of all the activation related feature files:

RBAR, FABR and Mediation
- The feature Activation file is in the following directory path /var/lib/jenkins/workspace/Regression/Cust-Roaming-Suite/Activation.feature
RSA
- The RSA activation file is the following directory path:
```
 /var/lib/jenkins/workspace/New-Features/Activate_RSA.feature
```
DSA
- File: The DSA activation file is the following directory path: /var/lib/jenkins/workspace/DSA/Activate_DSA.feature

Activating the features

RBAR FABR Mediation:

Log in to ATS Jenkins GUI https://<ATS IP>:8443
To activate ATS Jenkins GUI, click Regression, as shown in the following image:

Figure 6-5 Regression
Click Build with Parameters to build the parameters required for the activation.

Figure 6-6 Build with Parameters
You can either select the All option as shown below or, you can select to run each feature (RBAR, FABR, and Mediation) individually.
Click Build to Activate Applications.

Figure 6-7 Build

Figure 6-8 Applications
RSA:
1. Log in to ATS’s Jenkins GUI https://<ATS IP>:8443.
2. Select New-Features, and then click Build with Parameters .
Select Activate RSA Application, and click Build.

Figure 6-9 Activate RSA
The following image shows the result

Figure 6-10 Result
To deactivate, select Deactivate RSA Application, and click Build.

Figure 6-11 Deactivate
To configure DSA:
1. Log in to ATS Jenkins GUI https://<ATS IP>:8443.
2. Select DSA, as shown in the following image, and then click Build with Parameters

  Figure 6-12 DSA feature

  Figure 6-13 DSA
To activate, select Activate DSA Application, and then click Build.

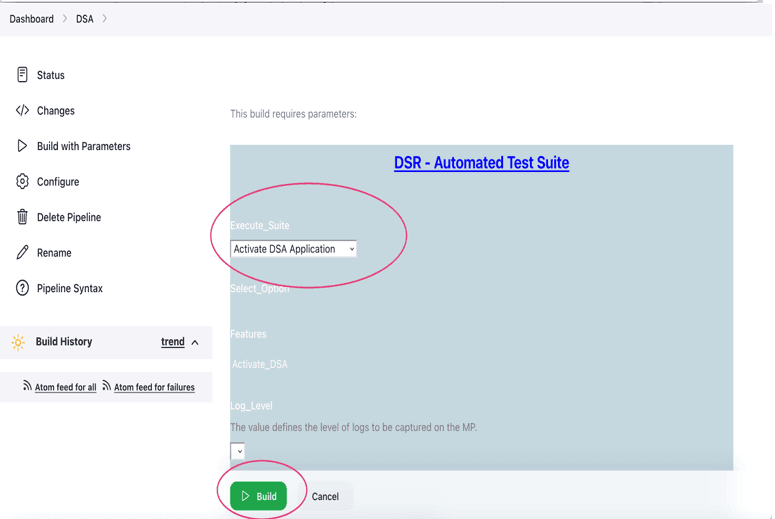

Figure 6-14 Activate DSA
Following is the result shown in the image:

Figure 6-15 Result
To deactivate, select Deactivate DSA Application, and then click Build.

Figure 6-16 Deactivate DSA application

Things to remember:

Deactivate DSA before Activating RSA, and vice versa.
Activation and Deactivation option for respective suites are available in DSA and New-Features suites, respectively.
For FABR, RBAR, and Mediation, there is no Deactivate option, since they serve as prerequisites for multiple suites.

Note:

Ensure that there are no backup files in the /var/TKLC/db/filemgmt/backup location while executing the database restore test case on SOAM. If there are backup files, then the Mediation feature must be enabled in each backup file. Otherwise, sometimes the Mediation feature might get disabled while execution of this test case.

Ensure that RBAR and FABR are enabled as displayed in the following image:

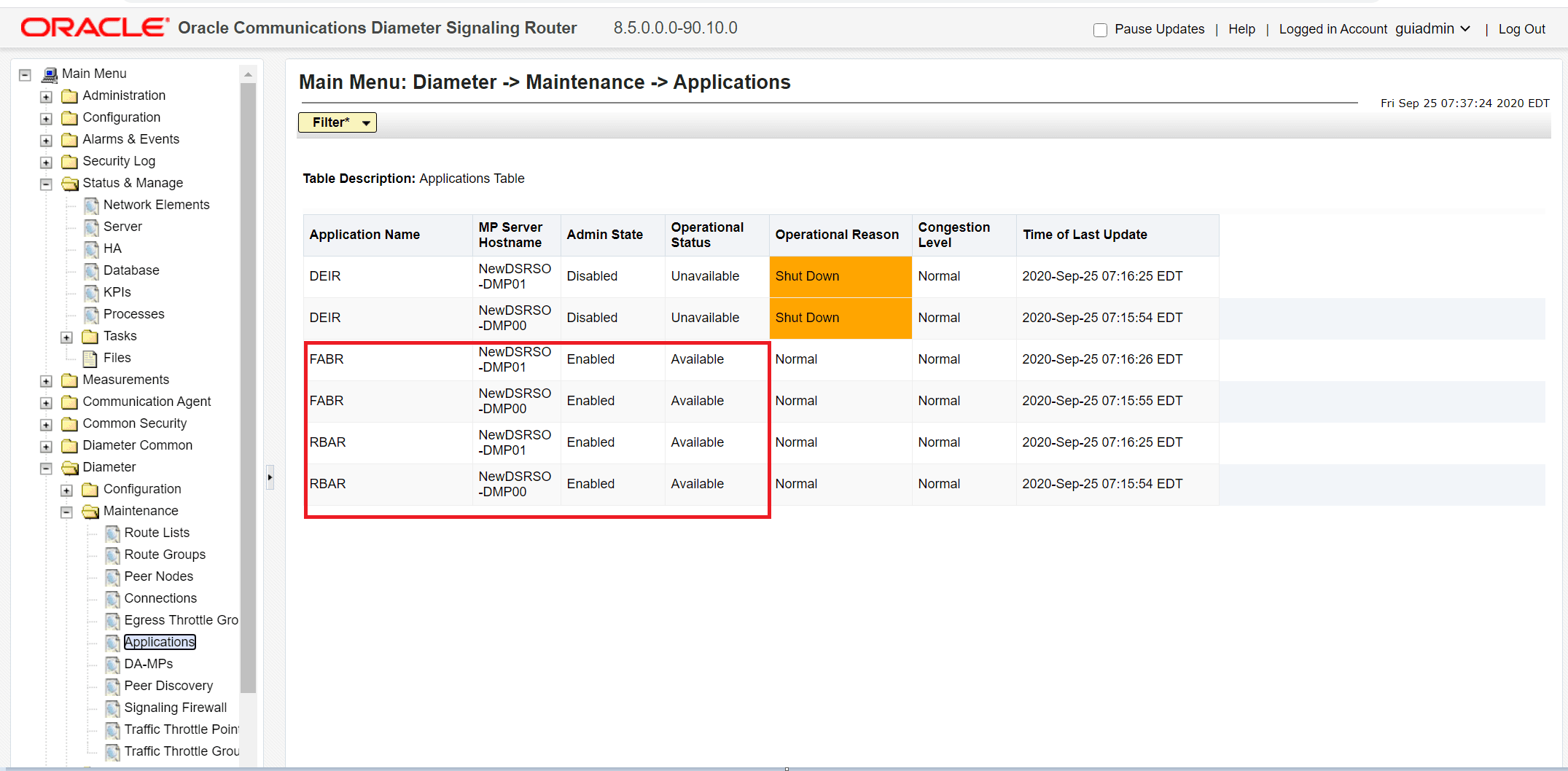

Figure 6-17 RBAR and FABR Enabled on the DSR GUI

Ensure that Mediation is enabled as displayed in the following image:

Figure 6-18 Mediation Enabled on the DSR GUI
Ensure that DCA is enabled as displayed in the following image:

Figure 6-19 DCA Enabled on the DSR GUI
Configure ComAgent connections on DSR by referring to the Diameter Signaling Router Cloud Installation Guide.

Note:
The DSR BUG 29035530 can cause ATS GUI case failure due to the "Security Violation" error when you perform any common GUI operation. This can be identified in /var/TKLC/appw/logs/Process/AppWorksGui.log by searching for the Security violation by a user keyword.
