5.5 Verify NOAM Post Upgrade Status

This procedure determines the validity of the upgrade and the health and status of the network and servers. If this procedure fails, contact My Oracle Support (MOS) and ask for assistance.

5.5 Active NOAM VIP: Post-upgrade Health Checks

This procedure runs the automated post-upgrade health checks.
  1. Navigate to Administration, then Software Management, and then Upgrade.
  2. Select the active NOAM.

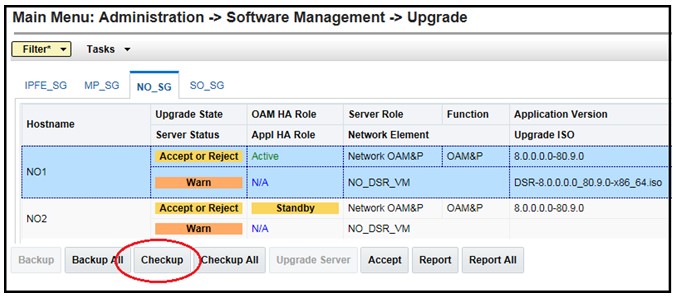

    Figure 5-1 Active NOAM VIP Upgrade State

    Active NOAM VIP Upgrade State
  3. Click Checkup.

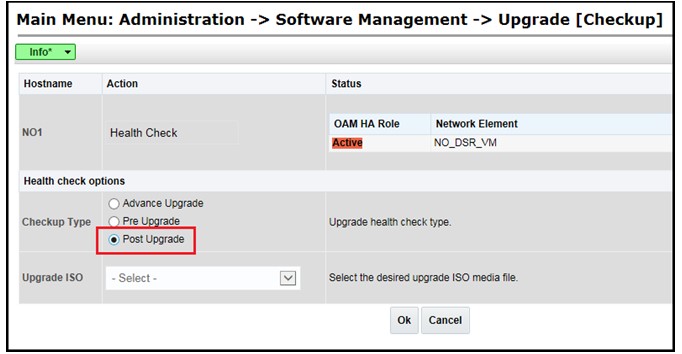

  4. Under Health check options, select the Post Upgrade option.
  5. Click OK.

    Control returns to the Upgrade screen.

    Figure 5-2 NOAM Upgrade Screen

    NOAM Upgrade Screen

5.5 Active NOAM VIP: Monitor Health Check Progress

  1. Click the Tasks option to display the currently executing tasks. The Health Check task name appears as <NOServerGroup> PostUpgrade Health Check.
  2. Monitor the health check task until the Task State is completed. The Details column displays a hyperlink to the Health Check report.
  3. Click the hyperlink to download the Health Check report.
  4. Open the report and review the results.

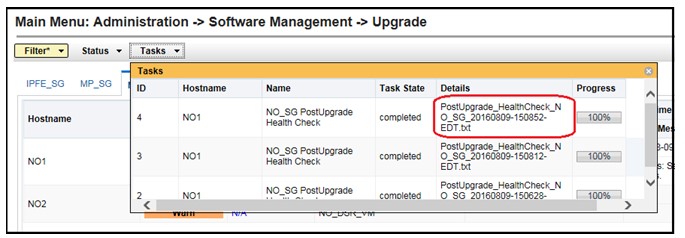

    Figure 5-3 Active NOAM VIP Health Check Progress

    Active NOAM VIP Health Check Progress

5.5 Active NOAM VIP: Analyze Health Check Failures

If the Health Check report status is anything other than Pass, the Health Check logs can be analyzed to determine if the upgrade can proceed.
  1. Navigate to Status & Manage, then Files.
  2. Select the file named UpgradeHealthCheck.log and click View.
  3. Locate the log entries for the most recent health check.
  4. Review the log for failures.

    Analyze the failures and determine if it is safe to continue the upgrade. If necessary, contact My Oracle Support (MOS) for guidance.
