2.17.1.1 Feature Description

The following example of Combined Linkset Networking describes the multiple routes support functionality:

Combined Linkset Networking

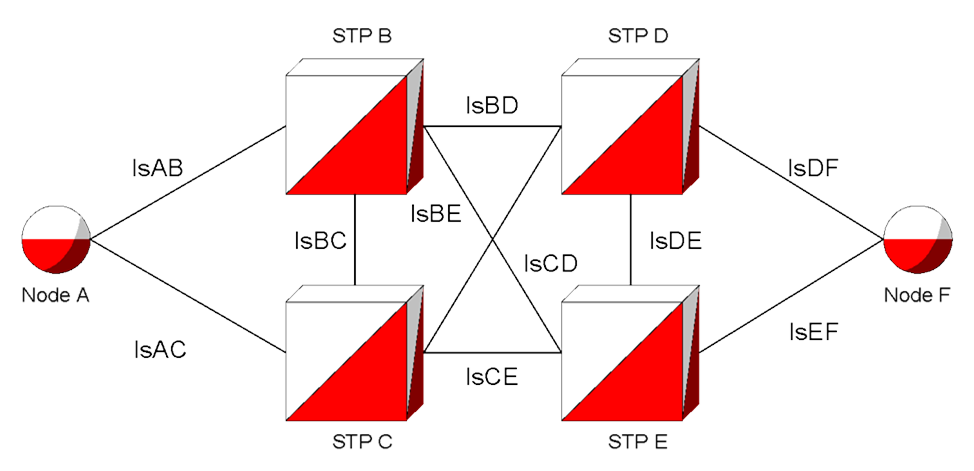

The following figure shows an example of combined linkset networking:

Node A has a route to Node F through a combined linkset where both lsAB and lsAC have the same relative cost for their respective routes, making up a cost group.

Thus, the following conditions holds true:

• The traffic sent from Node A over Linksets lsAB and lsAC will be distributed equally between both linksets.
• The status of the routeset of Node A for which the destination is Node F, follows the rules shown in the following table:

  Table 2-21 Route set Status

  lsAB Route Status	lsAC Route Status	RSP status	Linksets with Traffic
  Allowed	Allowed	Allowed	lsAB & lsAC
  Restricted	Allowed	Allowed	lsAC
  Allowed	Restricted	Allowed	lsAB
  Restricted	Restricted	Restricted	lsAB & lsAC
  Allowed	Prohibited	Allowed	lsAB
  Restricted	Prohibited	Restricted	lsAB
  Prohibited	Restricted	Restricted	lsAC
  Prohibited	Allowed	Allowed	lsAC
  Prohibited	Prohibited	Prohibited	None
