IDIH Deployment Using VNFM Heat Template

5.5 IDIH Deployment Using VNFM Heat Template

Introduction

IDIH deployment is performed using VNFM heat orchestration template. Heat template is in the yaml format file and requires the parameter file for the deployment.

Prerequisite

Download the RC file of the cloud on which the deployment is performed.
From the downloaded file, acquire the template, environment, and parameter file to perform the deployment.
Edit the parameter file for image, flavor, and network based on the cloud on which the deployment is performed.
The OpenStack client must be installed on the server where deployment is performed.

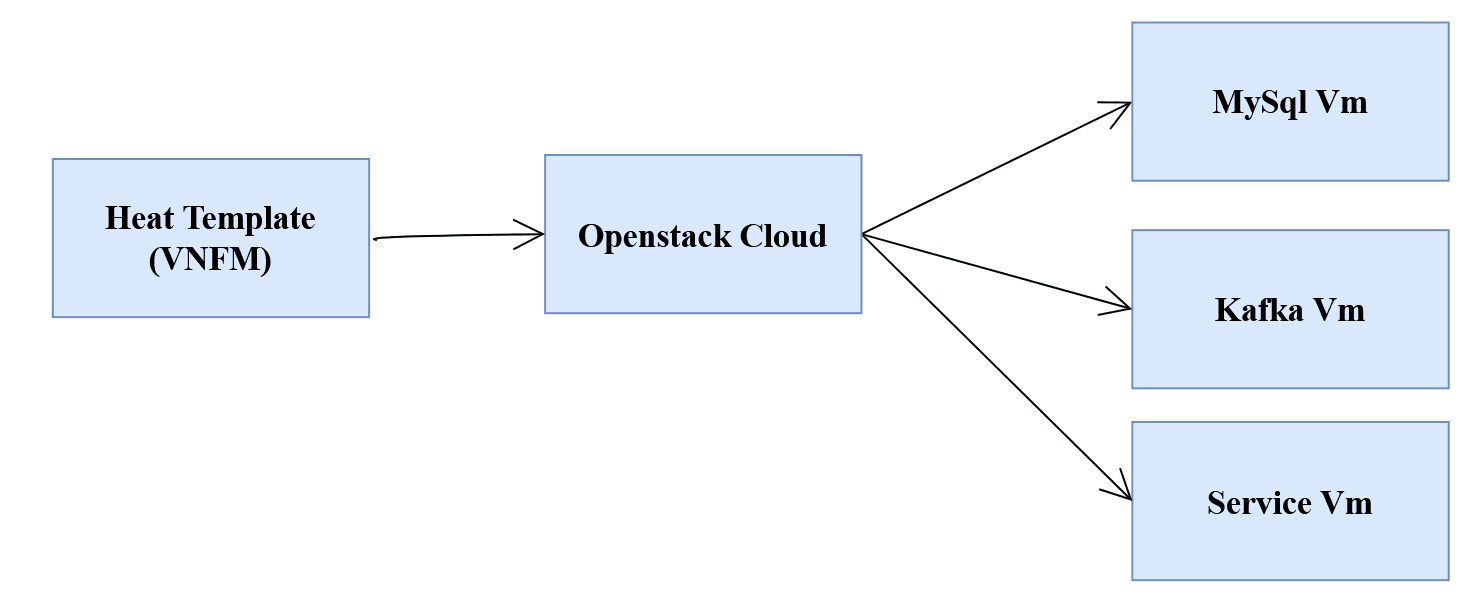

The following image describes the deployment of the heat template:

Figure 5-1 Heat template deployment

Note:

IDIH 9.1 requires different flavour VMs and additional resources as compared to the older IDIH.

Installation Steps through CLI

Perform the following steps to install and configure the IDIH:

Obtain the Linux box with the OpenStack client that is preinstalled. If not, first install Python and PIP, and then install the OpenStack client in Linux Box to interact with OpenStack through CLI.
Select the root user by running the following commands:
```
yum install python-devel
```
```
pip install python-openstackclient
```
The heatclient plugin will be skipped while importing. To install the plugin perform the following command:
```
pip install python-heatclient
```
Locate an OpenStack instance.

Note:
The identified OpenStack instance must meet the OpenStack prerequisites.
Download the OpenStack API credential file from OpenStack by performing the following steps:
1. Log in to OpenStack GUI.
2. Select the API Access section tab.
3. Click Download Openstack RC File and download Identity API v3 file.
Source the downloaded OpenStack API RC file in Linux box where OpenStack client is installed by running the following command:
```
source openrc.sh
```
When you run the command, it will prompt for the password, provide the OpenStack controller password.
Download the HEAT templates for installing IDIH.

Note:
Download the IDIH heat templates and parameter file through OpenStack Cli Client.

Following are the steps to upload the image file to OpenStack:

From the OpenStack GUI, navigate to Projects and Compute-Image.
Click Create Image.

In the Create Image dialog box, perform the following steps:

In the Image Source field, select Image File.

In the Image File field, select the IDIH VM images like MySql, Kafka and microServices.

The following table provides the value that must be provided in the DIH flavors:

Table 5-11 IDIH Flavor Value

Flavor name	VCPUs	RAM(GB)	Root Disk(GB)	Additional Information
kafka_flavor	12	16	170	Additional Cinder volume of 1 GB
Mysql-DB-DataNode	12	16	220	Additional Cinder volume of 1 GB
service_profile	12	16	120	NA

Modify the input parameters. Edit the heat parameters file in the params.yaml.
Note:
- The input parameters are defined as key value pairs. Only modify the values that appear on the right side of the colon.
- A YAML file must be structured appropriately. Do not remove any leading spaces or insert any new lines to the file.
After editing, Save the file.
Deploy the IDIH by performing the Openstack CLI, run the following command:
```
openstack stack create -t eidih_provider.yaml -e params.yaml  -e eidihResources.yaml <stackName>
```
Note:
- eidih_provider.yaml: The main template file for deployment of IDIH Servers.
- eidihResources.yaml: The registry yaml file for the mapping of the environment files and the security group file mapping.
- params.yaml: The parameter file specification:
  - Parameter file: required to provide the appropriate parameters such as network, flavor, and image for the desired VM.
  - Template file: The main heat template used for the deployment on cloud.
  - Environment file: The file used for the deployment, where all the configuration of the servers are present.
  - Resource file: It is the registry file which maps the required environment yaml files, like the security group.
  - Security Group yaml file: various ports are opened for various purposes.

Installation Steps through VNFM Swagger GUI

IDIH deployment is supported by VNFM, users can enter the required parameters directly through the swagger GUI, which is similar to an API call. The Swagger API will include a request JSON format that will accept the essential parameters for the IDIH stack deployment.

Sample Request JSON for Dynamic IP Deployment:

Instantiating eidih Request generated for Dynamic Ip Deployment

URL: https://<<VNFM HOST IP>>:8443/vnfm/v1/vnf_instances/< VNF ID received from create request>/instantiate


Accept: application/json


Content-Type: application/json

Authorization : <Token generated after login>
{
   "flavourId":"EIDIH",
   "instantiationLevelId":"small",
   "extVirtualLinks":"extVirtualLinks",
   "extManagedVirtualLinks":[],
   "vimConnectionInfo": {
        "MvlCloud": {
            "vimId": "vimId",
            "vimType": "ETSINFV.OPENSTACK_KEYSTONE.V_3",
            "interfaceInfo": {
                       "endpoint": "http://oortcloud.us.oracle.com:5000/v3"
            },
            "accessInfo": {
                       "project": "DSR IDIH",
                       "region": "RegionOne",
                       "username": "xxxx",
                       "password": "xxxx",
                       "userDomain": "DSEE",
                       "projectDomain": "xxxx"
 }
        }
    },
   "localizationLanguage":"localizationLanguage",
   "additionalParams":{
      "xmiNetwork":{
              "name":"ext-net2",
              "ipVersion":"IPv4",
              "xmiSubnetName" : "ext-net2-subnet"
      },
     "imiNetwork":{
              "name":"ext-net-lab",
              "ipVersion":"IPv4",
              "imiSubnetName" : "ext-net-lab-subnet"
      },

    "xsiNetwork":{
              "name":"xsiNetworkDual",
              "ipVersion":"IPv4",
              "xsiSubnetName" : "xsiIPv4"
      },

      "serviceImage": "service-9.1-split21",
      "serviceFlavor": "dsr.ipfe.bmark",
      "kafkaImage": "kafka-9.1-split21",
      "kafkaFlavor": "dsr.ipfe.bmark",
      "mySqlImage": "mysql-9.1-split21",
      "mySqlFlavor": "dsr.ipfe.bmark",
      "kafkaVolumeId": "95d2100c-41d2-4174-a2f2-903b81e82ac4",
      "mySqlVolumeId": "936cc476-a735-4fa9-ab19-f7d0bd14b5d9"
 }

Sample Request json for Fixed IP Deployment:

Instantiating eidih Request generated for Fixed Ip Deployment

URL: https://<<VNFM HOST IP>>:8443/vnfm/v1/vnf_instances/< VNF ID received from create request>/instantiate


Accept: application/json


Content-Type: application/json

Authorization : <Token generated after login>
{
    "flavourId": "EIDIH",
    "instantiationLevelId": "small",
    "extVirtualLinks": "extVirtualLinks",
    "extManagedVirtualLinks": [],
    "vimConnectionInfo": {
        "MvlCloud": {
            "vimId": "vimId",
            "vimType": "ETSINFV.OPENSTACK_KEYSTONE.V_3",
            "interfaceInfo": {
                "endpoint": "http://oortcloud.us.oracle.com:5000/v3"
            },
            "accessInfo": {
                "project": "DSR IDIH",
                "region": "RegionOne",
                "username": "xxxxx",
                "password": "xxxx",
                "userDomain": "DSEE",
                "projectDomain": "xxxx"
            }
        }
    },
    "localizationLanguage": "localizationLanguage",
    "additionalParams": {
        "xmiNetwork": {
            "name": "ext-net2",
            "ipVersion": "IPv4",
            "xmiSubnetName": "ext-net2-subnet",
            "fixedIps": {
                "kafkaXmiIp": "10.75.236.190",
                "serviceXmiIp": "10.75.236.61",
                "mysqlXmiIp": "10.75.237.38"
            }
        },
        "imiNetwork": {
            "name": "ext-net-lab",
            "ipVersion": "IPv4",
            "imiSubnetName": "ext-net-lab-subnet",
            "fixedIps": {
                "kafkaImiIp": "10.196.96.27",
                "serviceImiIp": "10.196.96.47",
                "mysqlImiIp": "10.196.96.50"
            }
        },
        "xsiNetwork": {
            "name": "xsiNetworkDual",
            "ipVersion": "IPv4",
            "xsiSubnetName": "xsiIPv4",
            "fixedIps": {
                "kafkaXsiIp": "192.168.1.16"
            }
        },
        "serviceImage": "service-91-split-23",
        "serviceFlavor": "dsr.ipfe.bmark",
        "kafkaImage": "kafka-91-split-23",
        "kafkaFlavor": "dsr.ipfe.bmark",
        "mySqlImage": "mysql-91-split-23",
        "mySqlFlavor": "dsr.ipfe.bmark",
        "kafkaVolumeId": "26d9bb7e-dde8-46c6-b6e9-9fcbaac6dfdf",
        "mySqlVolumeId": "0d8aa981-e560-4fbc-b65e-8bb640ced223"
    }
}
