5.3.1 System Health Check After Application Activation on NOAM Servers

This procedure verifies the PCA application activation on NOAM server and does not require a maintenance window
  1. Establish a GUI session on the NOAM server by using the VIP address of the NOAM server. Open the web browser and enter the URL: http://<Primary_NOAM_VIP_IP_Address>
  2. Login as the guiadmin user.

    Figure 5-14 Oracle System Login


    Oracle System Login

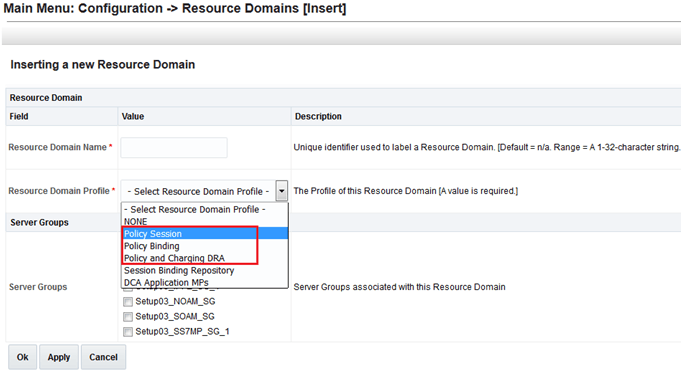

  3. Verify the Resource Domain Profile shows the new profile entries.

    Figure 5-15 Resource Domain Profile


    Resource Domain Profile

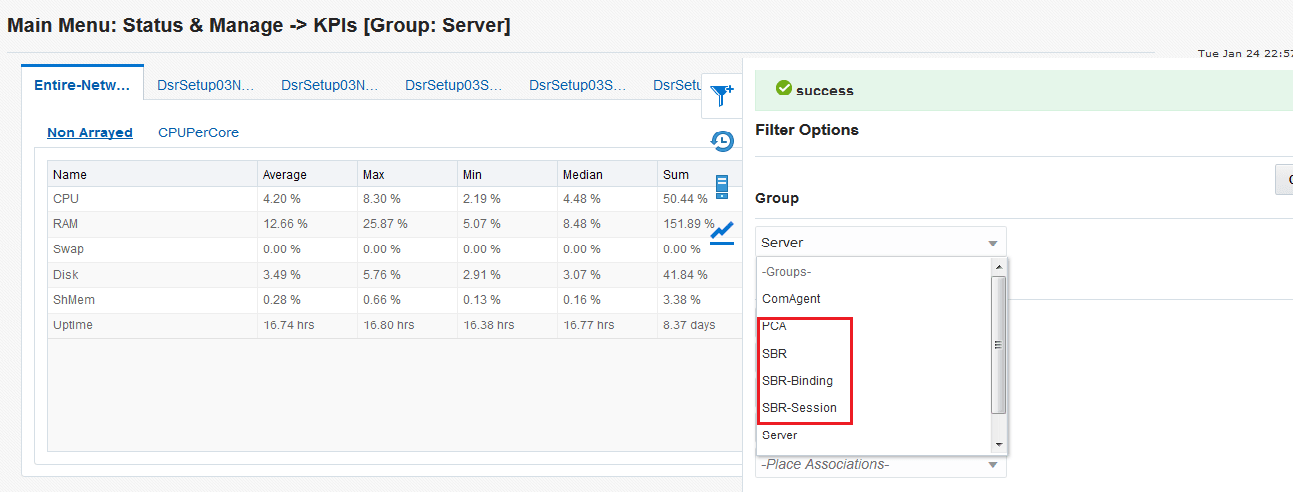

  4. Verify KPI’s filter option shows the KPI Group for PCA, SBR-Binding, and SBR-Session.

    Figure 5-16 KPIs


    KPIs

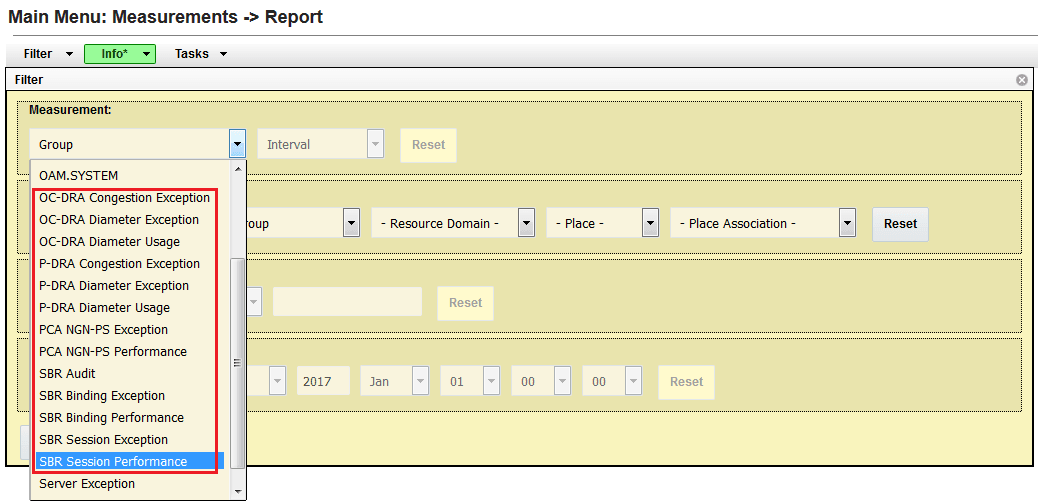

  5. Verify the PCA-specific Measurement groups are shown for OC-DRA, P-DRA, and SBR.

    Figure 5-17 Measurement Groups


    Measurement Groups

  6. Verify the Main Menu on active NOAM shows the Policy and Charging submenu with Configuration and Maintenance screens.

    Figure 5-18 Main Menu


    Main Menu
