3.4 Configure Active UDR NOAM for ZBA application

1. From the main Menu, Navigate to UDR, then select Subscriber Entity Configuration, then select Transparent Entity, select Base Field Set, and click Edit.
2. Under SprProfileBFS add these fields for ZBA Application.

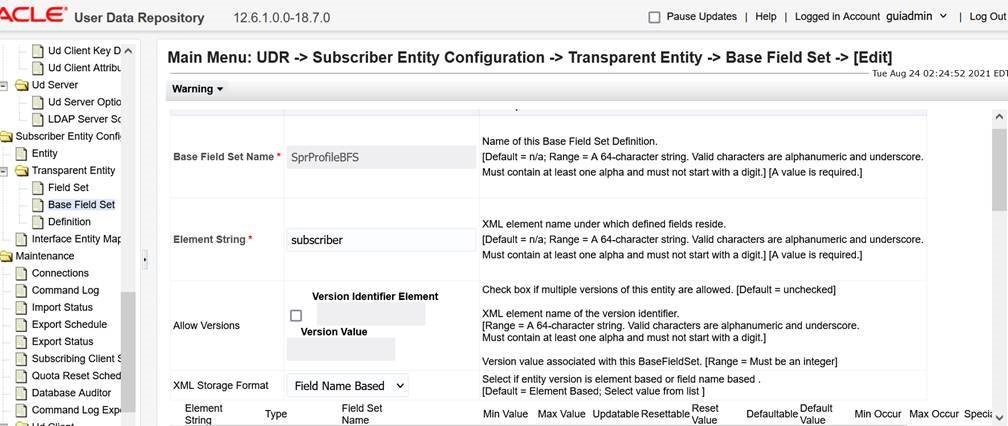

   Figure 3-1 SprProfileBFS screen









   Note:

   If DSA application is activated on that setup, the following fields are present.

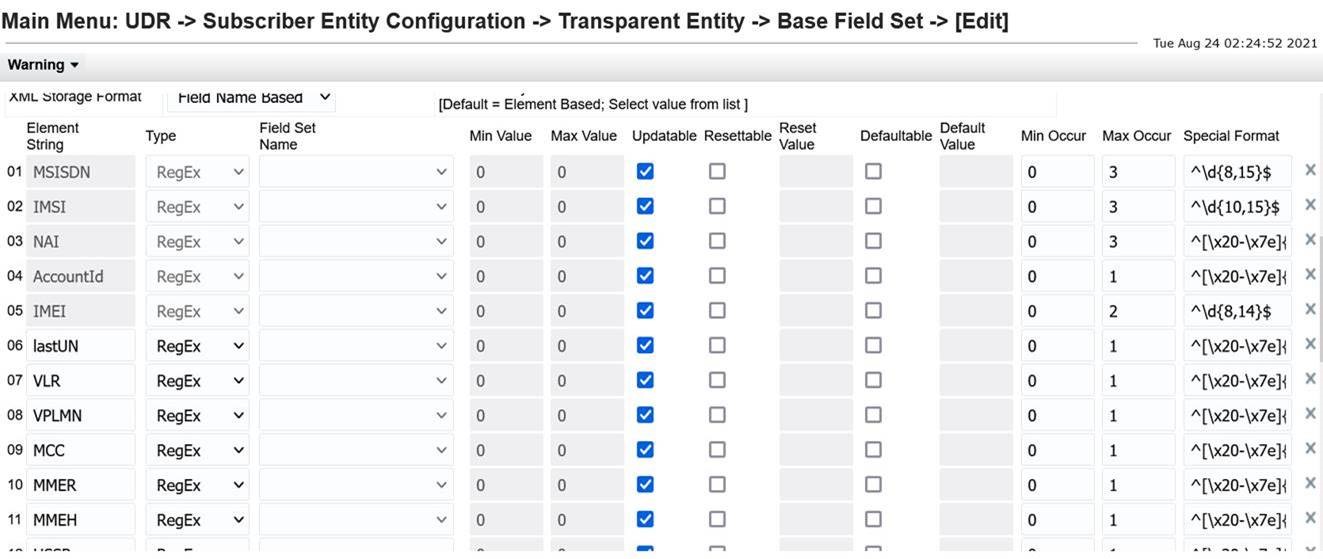

   Figure 3-2 SprProfileBFS field screen








3. Configure the following fields.

   ZBA Specific Fields :
   MSISDN – key

   ZbEventCount  -- value contains digit  : Reg Exp : ^\d+$
   BlockingStatus  :  value contains string “unblock/block”  :
   ^[\x20-\x7e]{0,255}$
   BlockTime: value contains digit  Reg Exp: ^\d+$
   DetectionState : value contains string “ON/OFF”  Reg Exp  :
   ^[\x20-\x7e]{0,255}$
   DetectionTime : value contains digit : Reg Exp : ^\d+$

   Figure 3-3 Configuration fields
