1. Zero Balance Application User Guide
  2. Upgrading the ZBA

4 Upgrading the ZBA

The upgrade from Zero Balance Application (ZBA) with Universal Session Binding Repository U-SBR to ZBA with UDR DSR release is not supported.

The upgrade from ZBA with UDR to ZBA with UDR DSR Release is supported.

  1. Export the SOAM level configuration data to the previous release setup.
    • Log in to the SOAM GUI.
    • From the Main Menu, navigate to DCA Framework, Zero Balancing Application, and then Application Control. Ensure that an entry is added in DCA application version details table.
    • Select the required Zero Balance Application version name.
    • Click B Level Config Data in the Export section of the Application Control page.

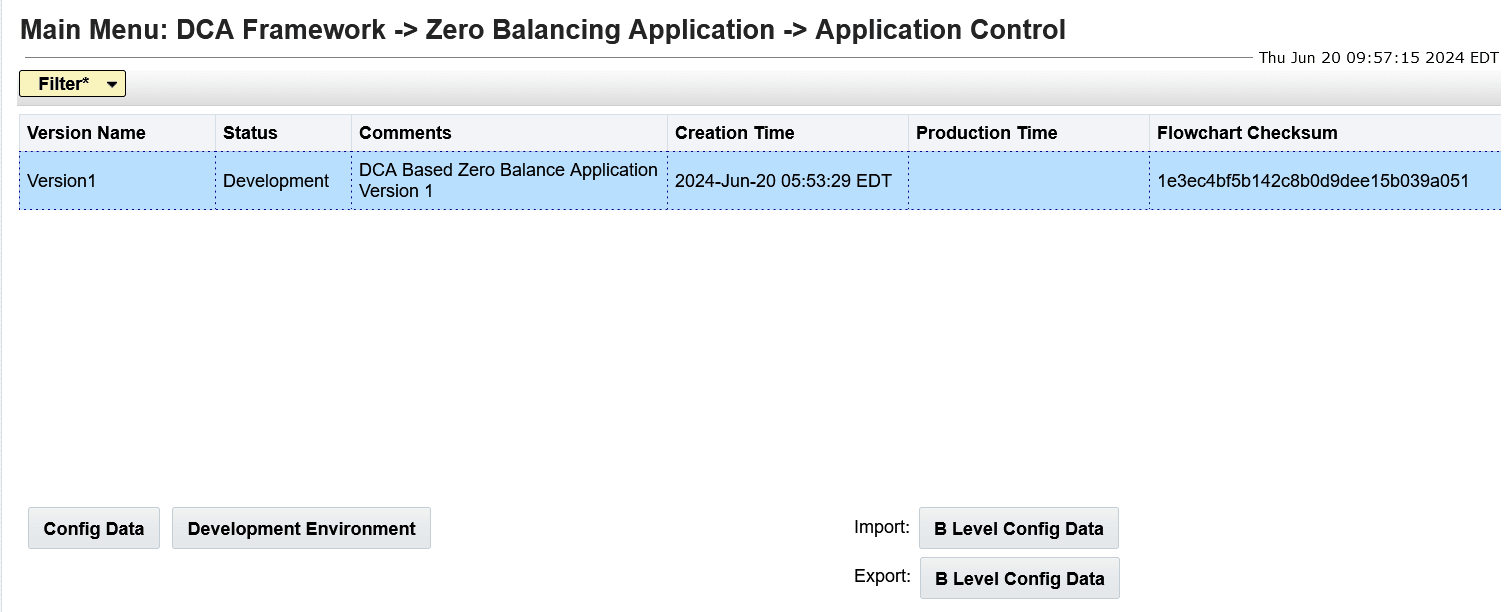

      Figure 4-1 Application Control Page


      Application Control Page

  2. To import the configuration data to a new release setup, the ZBA should be fresh installed on a new release. The application should be deactivated, then activated, and then NOAM json file of the upgraded release should be imported. For more information, see Importing the ZBA JSON File.
  3. Perform the following procedure to import the SOAM level json:
    1. Log in to the active SOAM GUI.
    2. From the SOAM GUI Main Menu, navigate to DCA Framework, Zero Balancing Application, and then Application Control.
    3. Click B Level Config Data in the import section of the Application Control page , select the file, and then click Import to import the SOAM configuration data.
