Using the Run Control Registration Wizard
Run Control IDs are created to simplify a single task. When the task gets completed, these Run Control IDs become irrelevant. Run Control ID Management enables you to retrieve, validate, and delete Run Control IDs.
Any new run control component or page needs to be registered in the Run Control Registration wizard with run control record and fields information to be considered for Run Control ID Management.
You can delete run control IDs through Application Run Control Management and not through PeopleTools.
See the product documentation for PeopleSoft Enterprise Components.
To access the Run Control Registration wizard, select

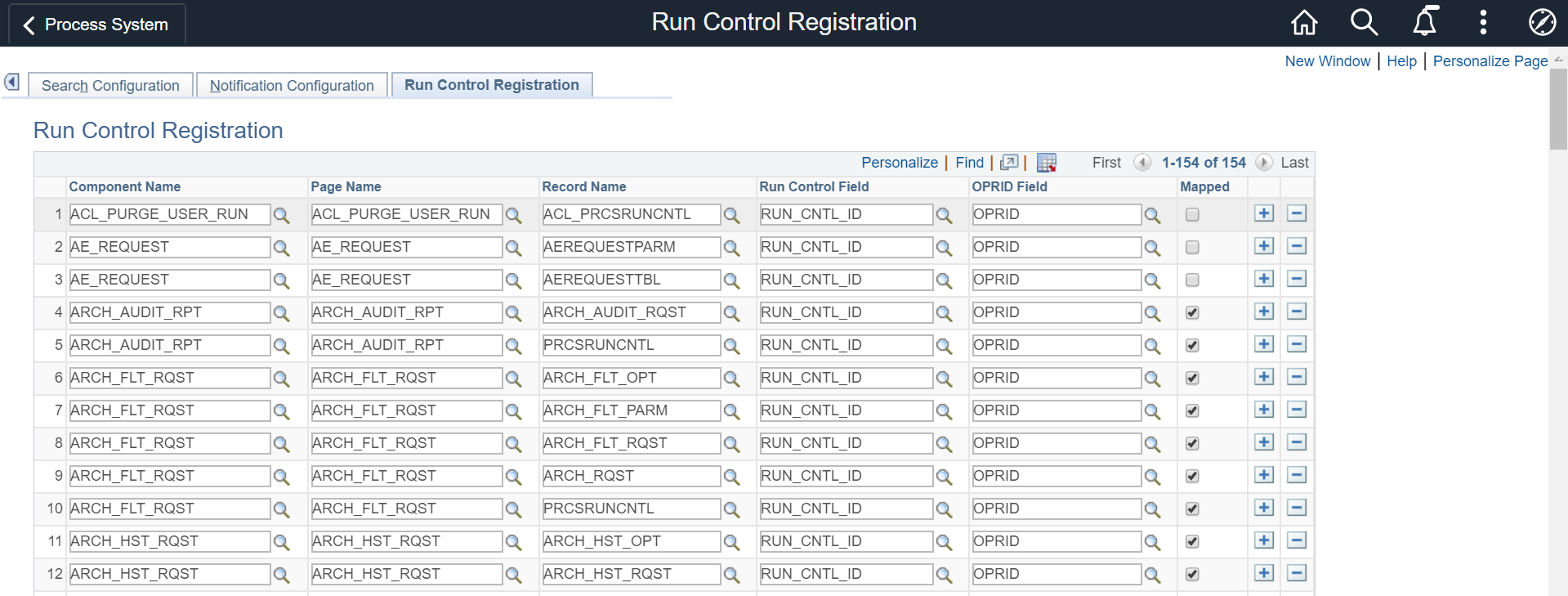

This example illustrates the fields and controls on the Run Control Registration wizard. Definitions for the fields and controls appear following the example.
Field or Control |
Description |
|---|---|
Component Name |
Enter part or all of the component name, or click the Lookup button to search for one. |
Page Name |
Enter part or all of the page name, or click the Lookup button to search for one. |
Record Name |
Enter part or all of the record name, or click the Lookup button to search for one. |
Run Control Field |
Enter part or all of the run control name, or click the Lookup button to search for one. |
OPRID Field |
Enter the PeopleSoft User ID, using which the Run Control ID was created. |
Mapped |
The Mapped Flag, if selected, indicates that the PS_PRCSRUNCNTL table is used in the component to store run control information. Note: The PS_PRCSRUNCNTL table is the default run control table for all sub-pages that run processes from PeopleSoft Applications. It can be substituted with a custom run control record during the run control component design. Therefore, it can either be used alone to store run control information, used in conjunction with component-specific run control tables, or not used at all. The Mapped flag should be selected when the PS_PRCSRUNCNTL table is used in the run control component. |
Note: Applications will have Run Control ID Management Wizard for managing Run Control IDs.
