About Integration Object Structure

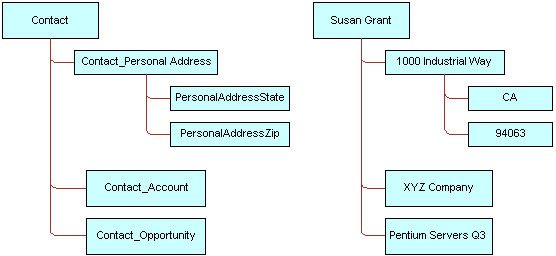

Integration objects are metadata structures that represent hierarchical objects using components and fields. For example, the Contact integration object might have the following components—Personal Address, Account, and Opportunity. The following image shows an example of the Contact integration object, and the integration object instance containing the data for Contact as follows:

Contact: Susan Grant
   Contact_Personal Address: 1000 Industrial Way
       PersonalAddressState: CA
       PersonalAddressZip: 94063
   Contact_Account: XYZ Company
   Contact_Oppportunity: Pentium Servers Q3

The structure of integration objects includes the following:

• Components and Fields in Integration Objects

• List of Value Fields in Integration Objects

• Related Business Component Selection in Database Updates

• Unique Keys in Integration Objects

For data synchronization services, there are two types of integration objects. For more information about data synchronization services, see ASI Data Synchronization Services.

For more information about integration objects, see Integration Platform Technologies: Siebel Enterprise Application Integration.
