How Siebel CRM Renders Div Containers on Siebel Servers

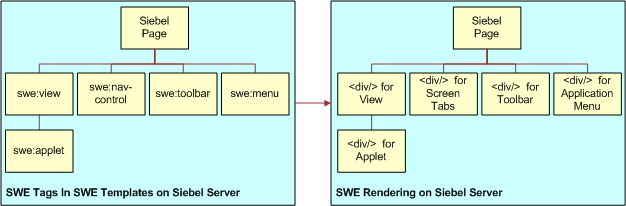

The following figure illustrates how the Siebel Server uses OD tags that reside in ODH to render div containers on the Siebel Server. For example, it renders:

  • A tag with type od-type="view" as a View container.

  • A tag with type od-type="nav-control" as a Screen Tab container.

  • A tag with type od-type="toolbar" as a Toolbar container.

  • A tag with type od-type="menu" as an Application Menu container.

  • A tag with type od-type="applet" as an Applet container.

How Siebel Servers Use ODH to Render Containers on the Siebel Server: This image is described in the surrounding text.
