Siebel Connector for ACORD XML

This chapter describes the methods, input arguments, and output arguments for configuring the components of a Siebel Connector for ACORD XML.

The Siebel Connector for ACORD XML consists of the following components:

Transaction manager
Transformation engine
Converter
Dispatcher
Transport adapter

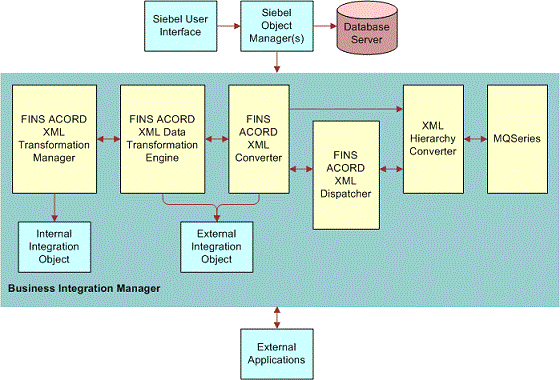

The following image shows the connector components.

Siebel Connector for ACORD XML Components. In this image, connector components are connected to each other by two-way arrows. Additionally, XML Hierarchy Converter is connected by two-way arrow to MQ Series. FINS ACORD XML Transformation Manager is connected by arrow to Internal Integration Object. FINS ACORD XML Data Transformation Engine and FINS ACORD XML Converter are connected to External Integration Object.

The connector components are Siebel business services, which are configured in the Workflow view. The integration objects are created using the FINS ACORD Wizard, and they are configured using the Data Map editor.

Note: For information about Siebel integration objects, converter elements, and XML, see XML Reference: Siebel Enterprise Application Integration.
