Asset Management

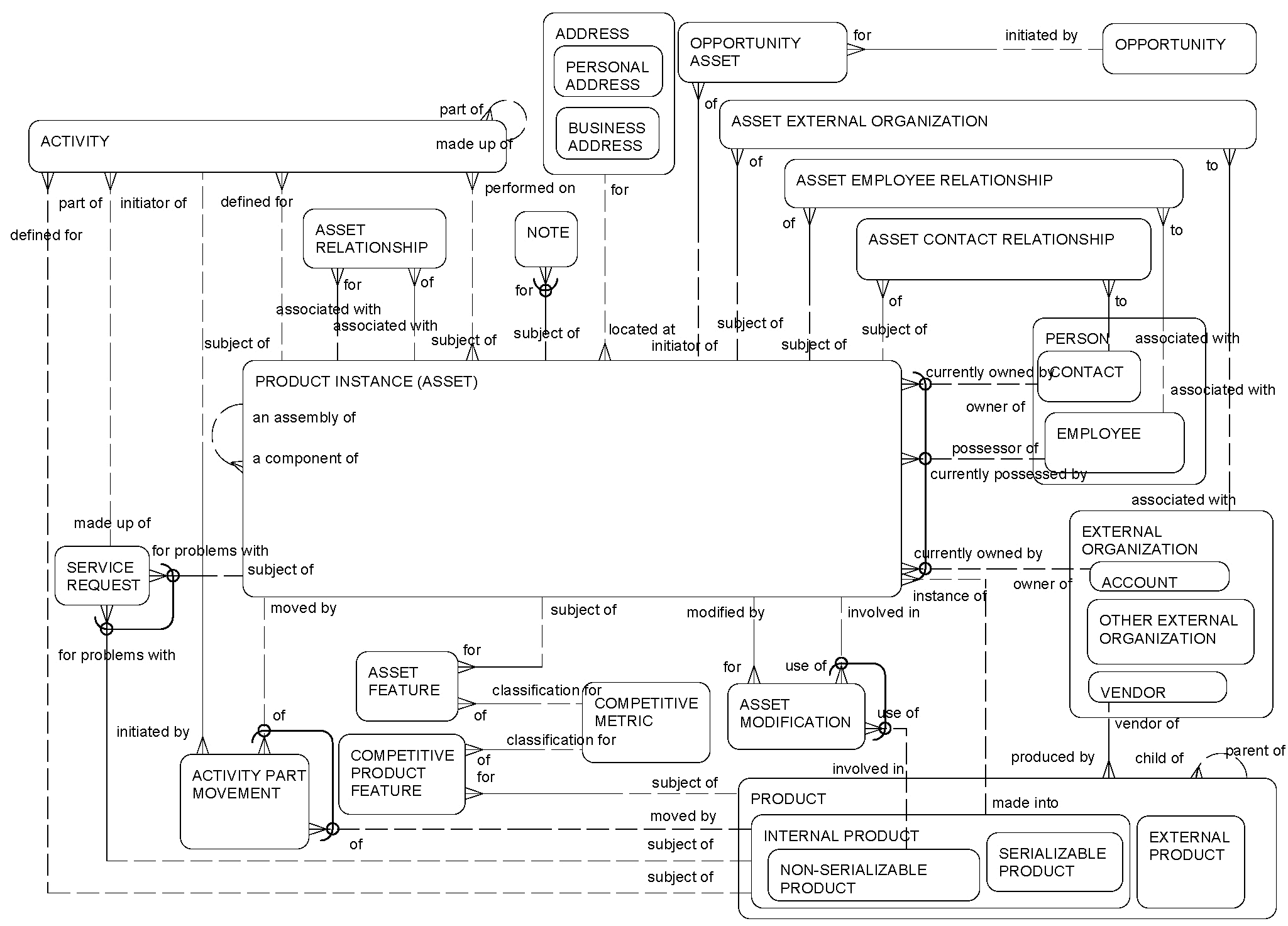

This ERD (see the following figure) illustrates how Siebel Business Applications track instances of assets. The diagram shows how internal products can be made into assets and associated with an account or a contact to register ownership. Additional relationships can be made between assets and accounts, contacts, and employees. Additional information includes the related opportunities, the current business or personal address location of the asset, notes, and related assets. There are also relationships with service requests, activities, and related part movements.

Asset Management: This image is described in the surrounding text.

The following table shows the entities in this ERD and their corresponding tables.

Entity Table

Activity

S_EVT_ACT

Activity Part Movement

S_ACTPART_MVMT

Asset Contact Relationship

S_ASSET_CON

Asset Employee Relationship

S_ASSET_EMP

Asset External Organization

S_ASSET_ACCNT

Asset Feature

S_ASSET_FEA

Asset Modification

S_ASSET_TXN

Asset Relationship

S_ASSET_REL

Business Address

S_ADDR_ORG (Siebel Cross-Industry Applications) S_ADDR_PER (Siebel Industry Applications)

Competitive Metric

S_CMPT_MTRC

Competitive Product Feature

S_CMPT_PROD_FEA

Contact

S_CONTACT, S_PARTY

Employee

S_EMP_PER, S_CONTACT, S_PARTY

External Product

S_PROD_EXT

Internal Product

S_PROD_INT

Opportunity

S_OPTY

Opportunity Asset

S_OPTY_ASSET

Person

S_CONTACT, S_PARTY

Personal Address

S_ADDR_PER

Product Instance (Asset)

S_ASSET

Service Request

S_SRV_REQ
