CME Agreement

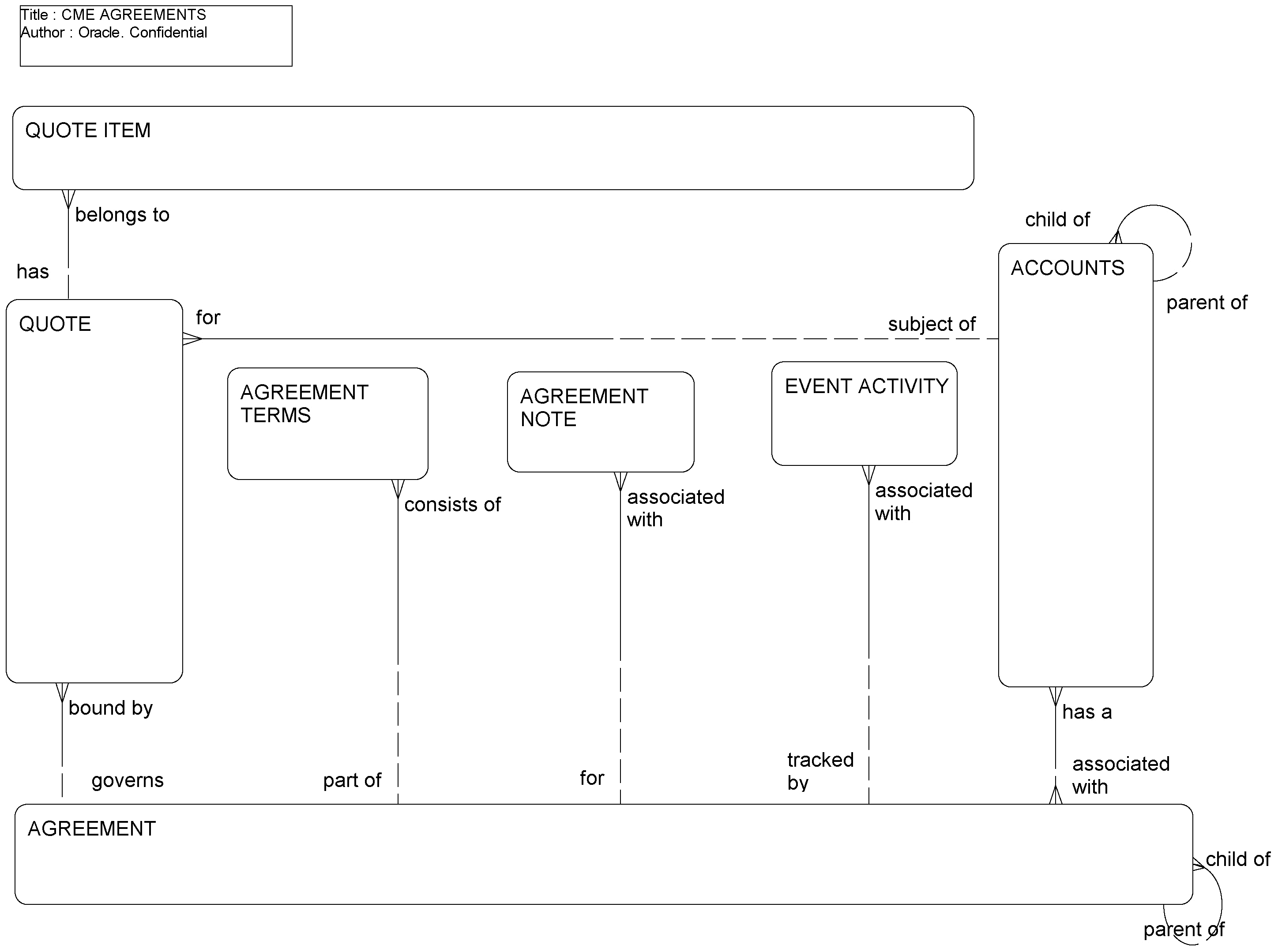

This ERD (see the following figure) illustrates how an agreement is managed in Siebel Business applications. An agreement can be associated with many accounts. Terms and entitlements are associated with an agreement. An agreement covers service instances and products through the account with which it is associated.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Accounts	S_ORG_EXT, S_PARTY
Agreement	S_DOC_AGREE
Agreement Note	S_NOTE_AGR_CUT
Agreement Terms	S_AGREE_TERMS
Event Activity	S_EVT_ACT
Parameter	S_QUOTE_ITEM_XA
Quote	S_DOC_QUOTE
Quote Item	S_QUOTE_ITEM
Solution Set	S_QUOTE_ITEM
