Fleet Management

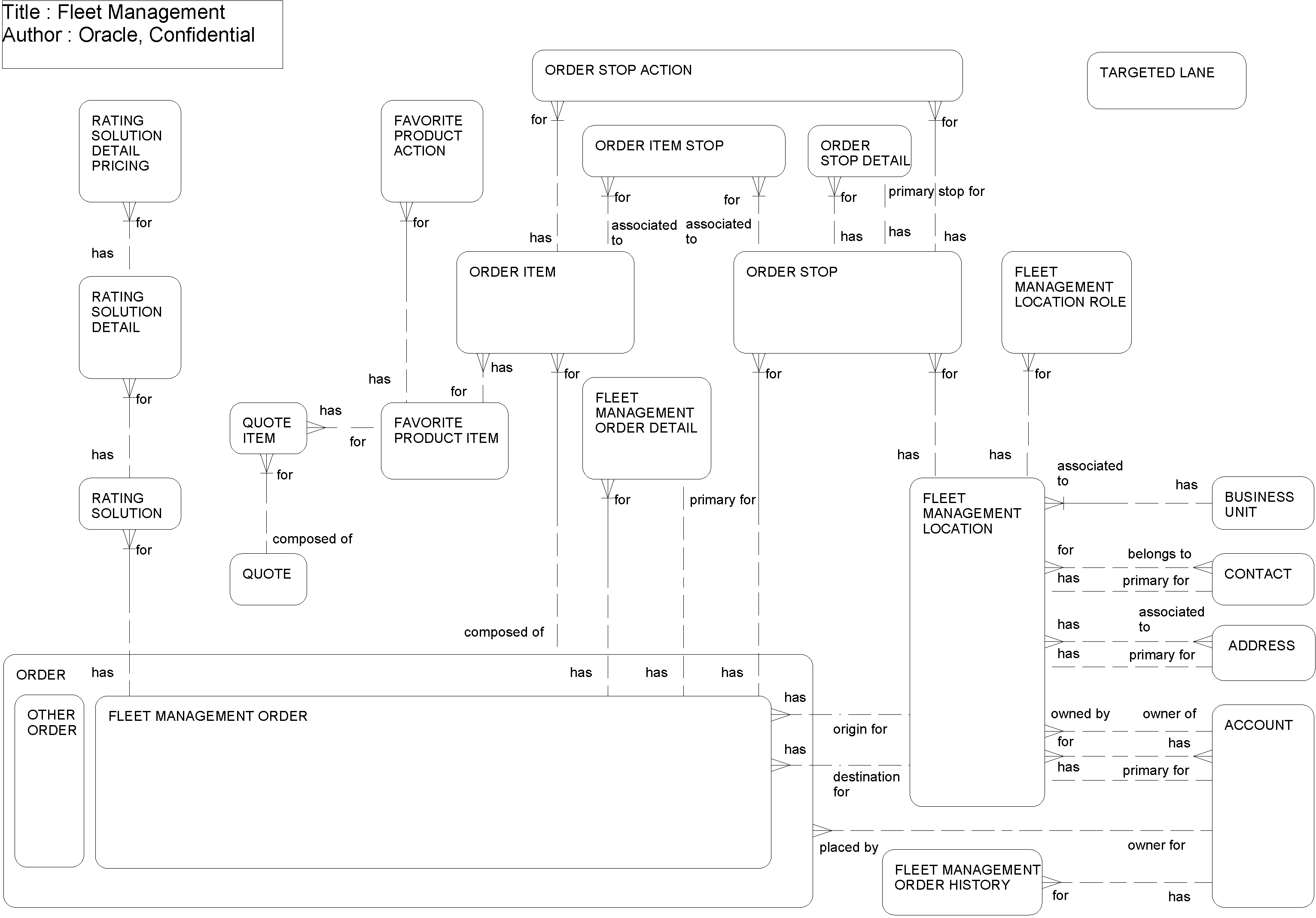

Fleet Management enables transportation management customers to perform order capture, rating, and order management of transportation orders. The following figure shows the Fleet Management ERD.

Return Route Orders functionality allows multiple stops to be created for a given location and allows both origin and destination locations to reference the same location.

Order Revision Enhancements functionality provides stricter constraints for revising, rejecting, and cancelling orders. Users will not be able to revise any inactive order or rejected order. Furthermore, users will not be able to revise any order in which there is a relationship with a cancelled order.

After completing the order, the customer service representative submits the order to Oracle Transportation Management. Oracle Transportation Management takes over the fulfillment of the order from the Siebel application. The marketing department of the transportation provider defines the targeted lanes; that is, the lanes where the company wants to focus on selling transportation routes. A lane is a route between an origin and a destination, using a given line of business. Whenever Oracle Transportation Management sends information that an order is complete, the Siebel application adds information about this order to its order history. The order history aggregates weekly orders for each account for each lane.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Account	S_ORG_EXT
Address	S_ADDR_PER
Business Unit	S_BU
Contact	S_CONTACT
Favorite Product Action	S_PRDFAVITM_ACT
Favorite Product Item	S_QUOTE_ITEM
Fleet Management Location	S_LOCATION
Fleet Management Location Role	S_LOC_ROLE
Fleet Management Order	S_ORDER
Fleet Management Order Detail	S_ORDER_FM_DTL
Fleet Management Order History	S_FM_ORDER_HIST
Order Account	S_ORG_EXT
Order Item	S_ORDER_ITEM
Order Item Stop	S_ORDITEM_STOP
Order Stop	S_ORDER_STOP
Order Stop Action	S_ORDSTOP_ACTN
Order Stop Detail	S_ORDERSTOP_DTL
Quote	S_DOC_QUOTE
Quote Item	S_QUOTE_ITEM
Rating Solution	S_RTNG_SLTN
Rating Solution Detail	S_RTNG_SLTN_DTL
Rating Solution Detail Pricing	S_SLTN_DTL_PRC
Targeted Lane	S_TARGETED_LANE
