LOY ABB New Member Process Workflow

The LOY ABB New Member Process workflow, shown in the following image, calls the LOY Action Based Bonus Subprocess, querying for Part Number equals Registration Bonus. If needed, then it also calls LOY Action Based Bonus Referral SubProcess to:

Create whether a new transaction has an action-based bonus of the type Registration Bonus.
Check whether there is need to create a referral-bonus transaction.

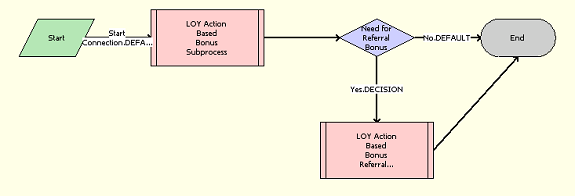

LOY ABB New Member Process Workflow: This image is described in the surrounding text.

Workflow Description. This workflow performs the following actions:

LOY Action Based Bonus Subprocess. This step calls a subprocess called LOY Action Based Bonus Subprocess which creates a new transaction for an Action Based Bonus of the type Registration Bonus.
Need for Referral Bonus. This step ends the workflow if a referral bonus is not required.
LOY Action Based Bonus Referral SubProcess. If Referral Bonus is required, then this step calls LOY Action Based Bonus Referral SubProcess, which creates a new transaction that gives a bonus to the referring member.
