LOY EAI Export Program Workflow

The LOY EAI Export Program workflow, shown in the following image, enables you to export program data from a third-party application into your Siebel Business Application through the Siebel EAI Adapter. This workflow can also be used to move Loyalty data, such as Loyalty Promotion Rules, from the development to the production environment. It is a sample workflow that you can modify to suit your business requirements.

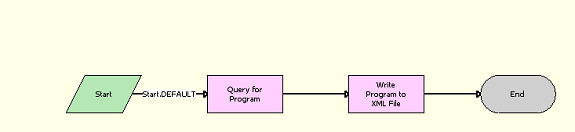

LOY EAI Export Program Workflow: This image is described in the surrounding text.

Workflow Description. This workflow performs the following actions:

  • Query for Program. This step calls the Query method of EAI Siebel Adapter Business Service, which retrieves the program information.

  • Write Program to XML File. This step calls the WriteEAIMsg method of the EAI XML Write to File Business Service, which writes the information to the XML file.
