SIS OM Suspend / Resume Products & Services Process

This workflow identifies an active document for the current account. Then it generates a line item to suspend or resume the selected asset and displays the document detail view. This workflow is shown in the following figure.

A user initiates this workflow by clicking the Suspend or Resume button in the following views:

  • Accounts screen, Service Items view

  • Accounts screen, Account Summary view

  • Networks screen, Nodes view

  • Networks screen, Connections view

  • Networks screen, All Elements view

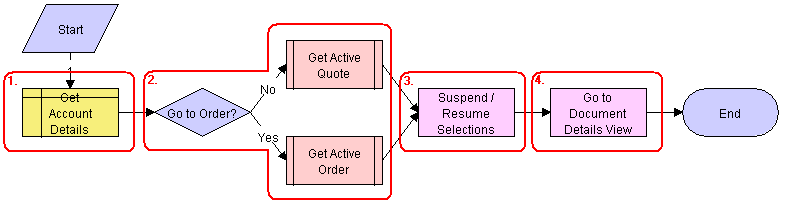

SIS OM Suspend / Resume Products & Services Process Workflow. This image is described in surrounding text.

Workflow Description

This workflow does the following:

  1. Gets the details of the current account.

  2. Retrieves the active document (quote or order) for the session.

    If the account is of type 'Residential', then the active order is retrieved. Otherwise, the active quote is retrieved. See SIS OM Active Quote Sub-Process and SIS OM Active Order Sub-Process.

  3. Allows the user to suspend or resume the asset.

    The workflow gets the asset's current state and then creates quote line items to suspend or resume the asset in that state. See SIS OM Suspend / Resume Asset Sub-process.

  4. Displays active document.

Associated Business Service Methods

The following table shows the steps in this workflow that call business service methods.

Workflow Step Business Service Method Called

Suspend / Resume Selections

Iterate Process For Selected Rows

Go to Document Details View

GotoView
