PUB Create Order Workflow

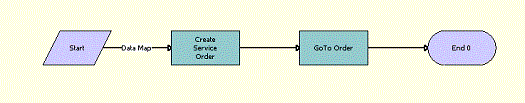

This workflow, shown in the following diagram, creates a referral order for a benefit. A user starts this workflow by clicking the Create Order button for a benefit in the Benefit Plans view.

As shown in this diagram, this workflow performs the following actions:

1. Create Service Order. This step creates a service order based on the data in the Benefit Line Item records. It uses the data map, PUB BenefitsToServiceOrder, to map the benefit line item to the order.

2. Goto Order. This step displays the Order Entry - Line Items XA view.

Associated Business Service Methods. The following table describes the steps in this workflow that call a business service method.

Workflow Step	Method Called	In Business Service
Create Service Order	DataTransfer	FINS Data Transfer Utilities
Goto Order	GotoView	PUB Workflow Service
