Employee Data Model

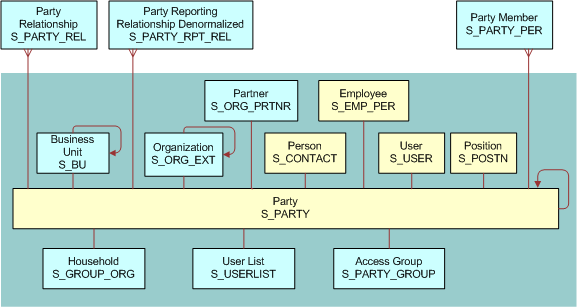

In the following image, the base table (S_PARTY) and extension tables (S_CONTACT, S_USER, and S_EMP_PER) that define an Employee are highlighted. Internal Employees and Partner Users are each represented as Employee records.

An Employee is a User with the following added qualities:

  • S_EMP_PER provides employee data for this user.

  • A position defined using the S_POSTN table is typically (but not necessarily) associated with an employee.

    • If the organization to which the position belongs is not a partner organization, then the employee is an internal employee.

    • If the organization is a partner organization, then the employee is a partner user.


Employee Data Model: This image is described in the surrounding text.
