List Template for Base or Edit List Mode

The Applet List (Base/EditList) template uses the AppletList (Base/EditList) Web template. You can use it for a read-only or editable list. It supports the parent, child, and grandchild styles.

The following image includes the generic layout that this template uses.

Generic Layout of the AppletList (Base/EditList) Template. In this image of a template, there is a bar at the beginning of the image with placeholders for buttons. There are columns rows and columns.

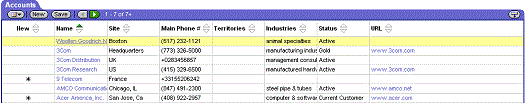

The following image includes an example that uses a single row layout that the user can edit.

Example of the AppletList (Base/Edit List) Template. This image of an example single row layout list applet is labeled Accounts at the beginning of the image. After that, there are buttons. There are eight columns with the following headers: New, Name, Site, Main Phone Number #, Territories, Industries, Status, and URL. After the row of column headers, there are records.

This template uses the following structure:

AppletList (Base/EditList)
   CCApplet_NamedSpacer
   CCTitle_Named
      CCTitle
   CCListButtonsTop
      CCButtons
      CCRecordNav
      CCTogglebar_drop
      CCListButtonsTopRight
    CCListHeader
    CCListBody

The following table lists the items that Siebel CRM can map for this template. For more information, see About Mapping IDs to Placeholders.

ID	Placeholder
106	Query
107	Go (ExecuteQuery)
108	Cancel (Query)
109 through 111	Control
121	First
122	Previous
123	Next
124	Last
131	New
132	Edit
133	Delete
134	Reset
135	Cancel
136	Save
139 through 143	Control
142 through 143	Control
144	Selected Row
145	Control
146	Save
147	Pick Control
150 through 151	Control
160 through 164	Control
501 through 540	Field
580	New
598	Save
599	Save
611 through 650	Field
1100	Outside Applet Help Text
1500	Required or Legend
