Creating ADM Data Type Relationships

Creating Application Deployment Manager (ADM) data type relationships is a step in Process of Creating Siebel ADM Deployment Units from Database Types.

For more information about ADM data type relationships, see About ADM Data Type Relationships.

Set up parent-child relationships between data types using the Data Type Explorer view.

Note: The deployment of child data types is attempted before the deployment of parent data types.

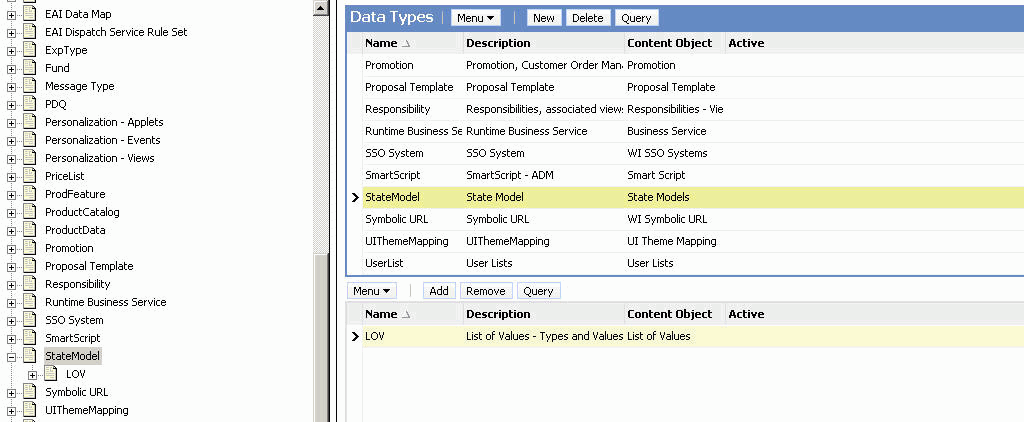

The following image shows an example of creating an ADM data type child relationship between State Model (parent) and LOV (child) data types.


Creating a Child Data Type Relationship: This image is described in the surrounding text.

To add a child relationship to an ADM data type

  1. Navigate to the Application Deployment Manager screen, then the Data Type Explorer view.

  2. In the Data Types list or Data Type explorer list, select the data type of interest.

  3. Click the Add button to access the data type list.

  4. Select the child data type of interest from this list.

    The selected child data type appears under the parent data type in the Data Type Explorer view.

To remove a child relationship from an ADM data type

  1. Navigate to the Application Deployment Manager screen, then the Data Type Explorer view.

  2. In the Data Types list or Data Type explorer list, select the data type of interest.

  3. In the child data type list, select the child data type that you want to remove, and click the Remove button.
