Creating the View

This task is a step in Creating a Shuttle Applet.

In this optional step, you define the view that contains the multi-value group applet and the association applet.

To create the view

1. In Siebel Tools, click the File menu, and then click New Object.

2. Choose View in the General tab, and then click OK.

3. Define properties in the New View dialog box using values from the following table.

   Property	Description
   Project	Choose the locked project where you created the association applet
   View Name	Enter ABC Contact Team View.
   View Title	Enter ABC Contact Team View.
   Business Object	Choose Contact.
   Upgrade Behavior	Choose Admin.

4. Click Next.

5. In the View Web Layout-Select Template dialog box, choose the following value, and then click Next:

   View 1 Over 2 Over 1


6. In the Web Layout-Applets dialog box, choose the following applets, and then click Next:

   • Create Contact Access List Assoc

   • Create Contact Access List MVG

7. Click Finish to create the view.

   Siebel Tools creates the new view, and then displays it in the Web Layout Editor.

8. Close the Web Layout Editor.

9. In the Object Explorer, click View.

10. In the Views list, locate ABC Contact Team View.

11. In the Object Explorer, expand the View tree, and then click View User Prop.

12. In the View User Props list, add three new records using values from the following table.

    Name	Value
    ShuttleViewMvgAppletName	Create Contact Access List MVG
    ShuttleViewMvgField	Sales Rep
    ShuttleViewParentBuscomp	Contact

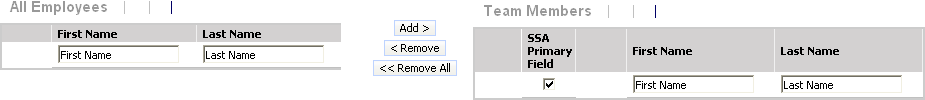

13. Open the view in the Web Layout Editor, and then modify the layout until it is similar to the layout displayed in the following diagram:



    To position an applet in the view, click the applet, and, keeping the mouse button depressed, move it to one of the empty side-by-side placeholders and then release the mouse button.

14. Compile and test your modifications.

    For more information, see Using Siebel Tools.
