How Siebel CRM Creates a Static Drilldown

A static drilldown is a type of drilldown that navigates the user to the same view.

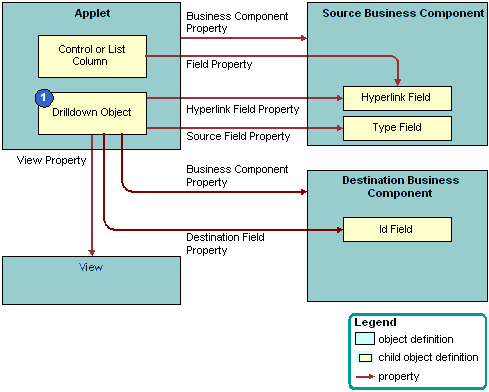

The following figure describes how Siebel CRM creates a static drilldown.

How Siebel CRM Creates a Static Drilldown: This image is described in the surrounding text.

Explanation of Callouts

As shown in this figure, Siebel CRM uses the following objects to create a static drilldown:

  1. Drilldown Object. Identifies a link field and a view. These properties define the list column or control that includes a link and the destination view that Siebel CRM displays if the user drills down on the link.
