Hierarchy That the Base Physical Renderer Class Uses

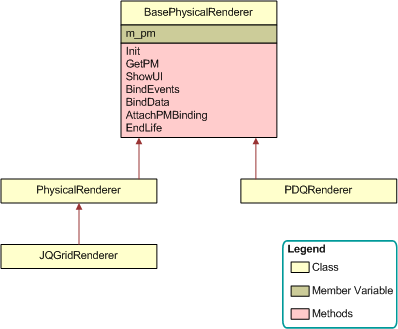

The following figure illustrates the hierarchy that the BasePhysicalRenderer class uses for non-mobile applications, which is as follows:

  • BasePhysicalRenderer

    -PhysicalRenderer

    -JQGridRenderer

  • BasePhysicalRenderer

    -PDQRenderer

BasePhysicalRenderer has a Member Variable (m_PM) and Methods (Init, GetPM, ShowUI, BindEvents, BindData, AttachPMBinding, EndLife). The member variable is a variable that is associated with the class. All methods can access this member variable.

Hierarchy That the Base Physical Renderer Class Uses: This image is described in the surrounding text.
