Textile, Apparel, and Footwear

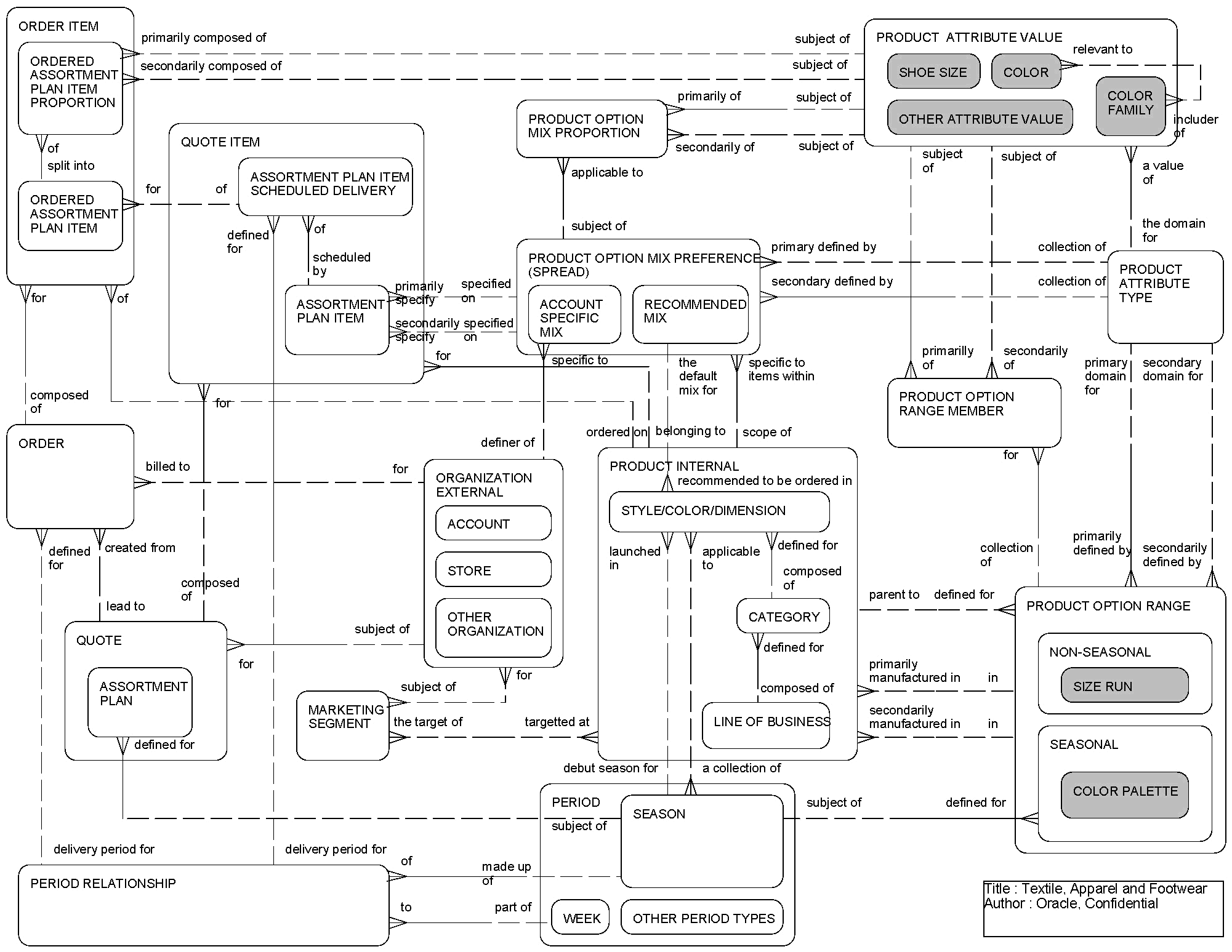

This ERD (see the following figure) illustrates how Siebel Business Applications support the assortment planning process in the textile, apparel, and footwear industries. A retailer can define the products that are sold in each season, then associate each product with one or more market segments to define recommended product assortments. Rather than complicating the assortment by specifying product entries for each combination of one or two attributes in which a style is manufactured (such as size or color), the attributes can be specified through a seasonal or nonseasonal product option range (for example, a shirt size range of S, M, L, and XL). The retailer can then further specify recommended product option mixes that indicate the proportion of each product option attribute value to deliver when ordering a style (for example, a mix preference of 20% S, 30% M, 30% L, and 20% XL), or each retail customer can create its own mix preferences. When creating an assortment plan for a season, the retail customer chooses the styles from the recommended product assortment for the season, modifies the assortment to fit its customers, and chooses the desired product option mix for each product option. The total ordered quantity of each style is then further broken down into the quantity to be delivered in each subperiod within the season (for example, each week in the season). This assortment plan can then serve as a guideline for ordering throughout the season or even facilitate the generation of orders in each delivery period in the season.
The shaded subtypes in the following figure indicate examples of the types of data that can be found within a supertype. They are not intended to indicate strict subtypes.
The following table lists the entities in this ERD and their corresponding tables.
| Entity | Table |
|---|---|
|
Marketing Segment |
S_MKT_SEG |
|
Order |
S_ORDER |
|
Order Item |
S_ORDER_ITEM |
|
Organization External |
S_ORG_EXT |
|
Period |
S_PERIOD |
|
Period Relationship |
S_PERIOD_REL |
|
Product Attribute Type |
S_LST_OF_VAL |
|
Product Attribute Value |
S_LST_OF_VAL |
|
Product Option Mix Preference |
S_PROD_OPT_MIX |
|
Product Option Mix Proportion |
S_PROD_OPT_PCT |
|
Product Option Range |
S_PROD_OPTION |
|
Product Option Range Member |
S_PROD_OPT_VAL |
|
Quote |
S_DOC_QUOTE |
|
Quote Item |
S_QUOTE_ITEM |
