FINS BIB Loan Account Update Workflow

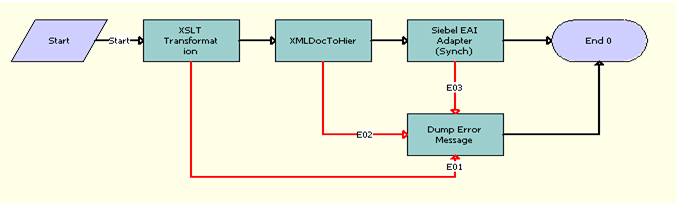

FINS BIB Loan Account Update Workflow, shown in the following figure, is invoked by FINCORP BIB Loan Account Update FAF Workflow and updates the Loan Account details sent by Oracle FLEXCUBE Universal Banking.

The FINS BIB Loan Account Update Workflow is described in the following topic.

Workflow Description

This workflow does the following:

  1. XSLT Transformation. This step transforms the UpdateLoanAccountEBM message structure to FINCORP Account IO using the EAI XSLT service.

  2. XMLDoc To IIO. This step converts the SiebelMessage into XMLHierarchy using the IntObjHierToXMLHier method of the EAI XML Convertor service.

  3. Siebel EAI Adapter (Upsert). Using the Upsert method of the EAI Siebel Adapter, this step updates the Loan Account details in the Siebel Finance database.
