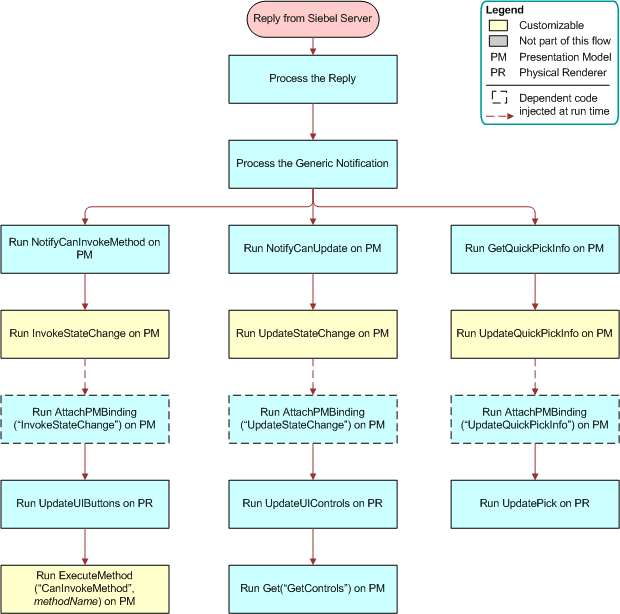

The following figure illustrates the life cycle flow that Siebel Open UI follows to notify the Siebel Server. The steps in the flow are as follows:
-
Process the reply.
-
Process the generic notification.
-
Run NotifyCanInvokeMethod on Presentation Model (PM) – see step 3.
-
Run NotifyCanUpdateMethod on PM – see step 4.
-
Run GetQuickPickInfo PM – see step 5.
-
-
Run NotifyCanInvokeMethod on PM.
-
Run InvokeStateChange on PM.
-
Run AttachPMBinding ("InvokeStateChange") on PM.
-
Run UpdateUIButtons on Physical Renderer (PR).
-
Run ExecuteMethod ("CanInvokeMethod", methodName) on PM.
-
-
Run NotifyCanUpdateMethod on PM.
-
Run UpdateStateChange on PM.
-
Run AttachPMBinding ("UpdateStateChange") on PM.
-
Run UpdateUIControls on PR.
-
Run Get("GetControls") on PM.
-
-
Run GetQuickPickInfo PM.
-
Run UpdateQuickPickInfo on PM.
-
Run AttachPMBinding ("UpdateQuickPickInfo") on PM.
-
Run UpdatePick on PR.
-
