Light List Template

The DotCom Applet List Light template uses the DotComAppletListLight web template. It can do the following:

Display a specialized list that includes a totals row at the end of the list. You must use Siebel Tools to configure a column that creates a total.
Include a double line at start of the totals row.
Use ID 199 to map a totals row label.
Use one label for all row totals. This label must be generic so that it describes all rows.

The following table includes the generic layout that this template uses.

Generic Layout of the DotComAppletListLight Template. This image is described in surrounding text.

The following table includes an example of this template.

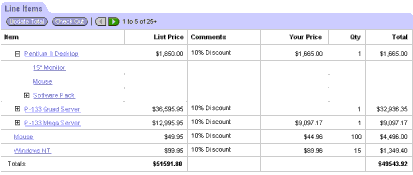

Example of the DotComAppletListLight Template. In this image, at the top, there is a tab labeled: Line Items. There are 6 columns that follow. The columns have the following headings: Item, List Price, Comments, Your Price, Qty, and Total.

This template uses the following structure:

DotComAppletListLight
   CCApplet_NamedSpacer
   CCTitle_Named
      CCTitle
   CCTogglebar_drop
   dCCListButtonsTop
      dCCButtons_List
      CCRecordNav
      CCTogglebar_drop
      CCListButtonsTopRight
   dCCListHeaderTotals
   dCCListBodyTotalsNoRowHilite

The following table lists the items that Siebel CRM can map for this template. For more information, see About Mapping IDs to Placeholders.

ID	Placeholder
2	Back
106	Query
107	Go (ExecuteQuery)
108	Cancel (Query)
109 through 111	Control
121	First
122	Previous
123	Next
124	Last
125	Info-Button
126	Query Assistant
131	New
132	Edit
133	Delete
134	Reset
135	Cancel
136	Save
139 through 143	Control
144	Selected Row
145	Control
146	Save
147	Pick Control
150 through 151	Control
160 through 164	Control
199	Totals Label
501 through 520	Control
1100	Outside Applet Help Text
1500	Required or Legend
