Popup List Template

The Popup List template uses the PopupList web template. It defines how Siebel CRM displays a list in Base or Edit List pop-up mode.

The following image includes the generic layout that this template uses.

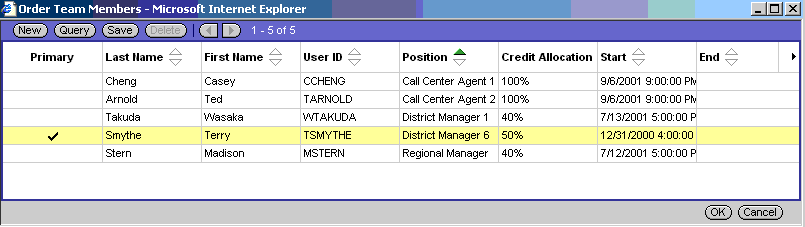

The following image includes an example of this template.

Example of the PopupList Applet Template. In this image, at the beginning of the applet there is a bar with buttons. After the bar, there is a row of column headers. Records appear in the rows after the header row.

This template uses the following structure:

PopupList
   CCListButtonsTop
      CCButtons
      CCRecordNav
      CCTogglebar_drop
      CCListButtonsTopRight
   CCListHeader
   CCListBody
   CCButtons_Popup

The following image lists the items that Siebel CRM can map for this template. For more information, see About Mapping IDs to Placeholders.

ID	Placeholder
2	Back
106	Query
107	Go (ExecuteQuery)
108	Cancel (Query)
109 through 111	Control
121	First
122	Previous
123	Next
124	Last
131	New
132	Edit
133	Delete
134	Reset
135	Cancel
136	Save
139 through 143	Control
144	Selected Row
145	Control
146	Save (Optional)
147	Pick
150 through 151	Control
152	OK
153	Cancel
154 through 158	Control
160 through 164	Control
501 through 540	Field
580	New
599	Save
611 through 650	Control
