Relations That the EIM Table Mapping Wizard Creates

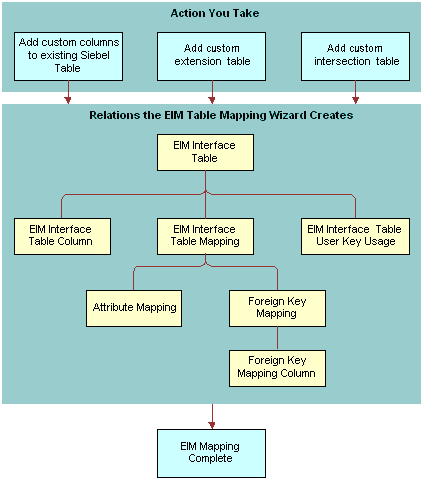

The following figure describes the relations that exist between objects that the EIM Table Mapping Wizard creates. The wizard maps objects and adds child objects to the predefined EIM interface table object. The figure contains the following information:

1. Actions You Take: Add custom columns to existing Siebel table, Add custom extension table, Add custom intersection table.

2. Relations that the EIM Table Mapping Wizard Creates:

   • There is 1:1 relationship between EIM Interface Table and each of the following: EIM Interface Table Column, EIM Interface Table Mapping, EIM Interface Table User Key Usage.

   • There is a 1:1 relationship between EIM Interface Table Mapping and each of the following: Attribute Mapping, Foreign Key Mapping.

   • There is a 1:1 relationship between Foreign Key Mapping and Foreign Key Mapping Column.

3. EIM Mapping is now complete.

For more information about EIM objects that the wizard creates, see Objects You Use with Enterprise Integration Manager.
