Automotive Retail

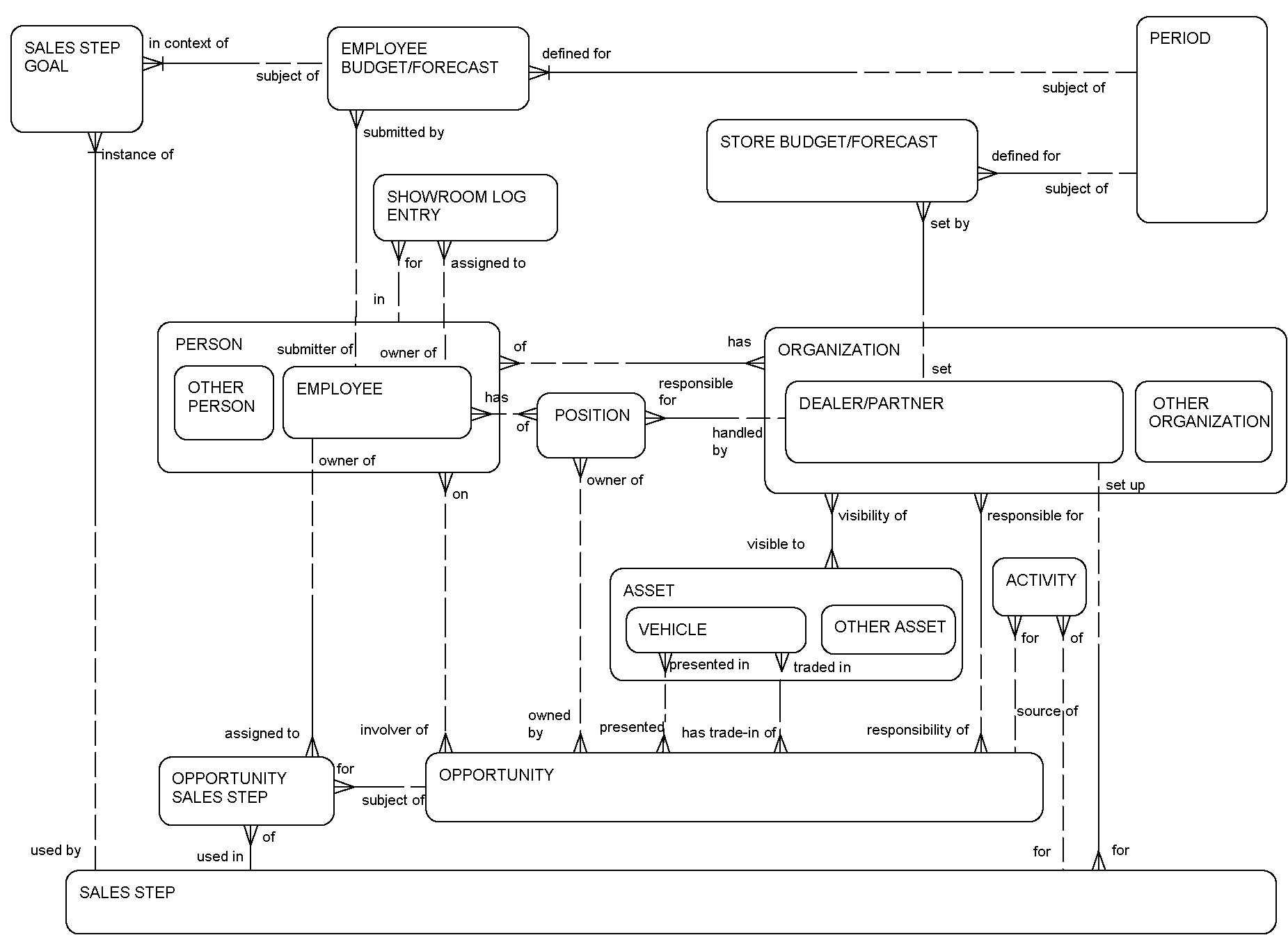

This ERD (see the following figure) illustrates the Automotive retail process at dealerships. Sales goals are defined for every sales representative as well as the dealership for a period (month, quarter, and so on.). These goals are for new and used vehicles or a fleet of vehicles. The sales process could comprise several steps and an opportunity to sell a vehicle might involve some of these sales steps. The sales steps taken by every sales representative are aggregated for the period to determine the effectiveness of each sales step.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Activity	S_EVT_ACT
Asset	S_ASSET
Employee	S_EMP_PER, S_CONTACT, S_USER
Employee Budget/Forecast	S_AT_PER_FCST
Opportunity	S_OPTY, S_OPTY_ATX
Opportunity Sales Step	S_OPTY_SLS_STEP
Organization	S_ORG_EXT, S_BU
Period	S_PERIOD
Person	S_CONTACT, S_CONTACT_ATX, S_CONTACT_BU
Sales Step	S_SALES_STEP
Sales Step Goal	S_FCST_SLS_STEP
Showroom Log Entry	S_COMM_LOG
Store Budget/Forecast	S_AT_ORG_FCST
Vehicle	S_ASSET, S_ASSET_ATX
