Commercial Insurance

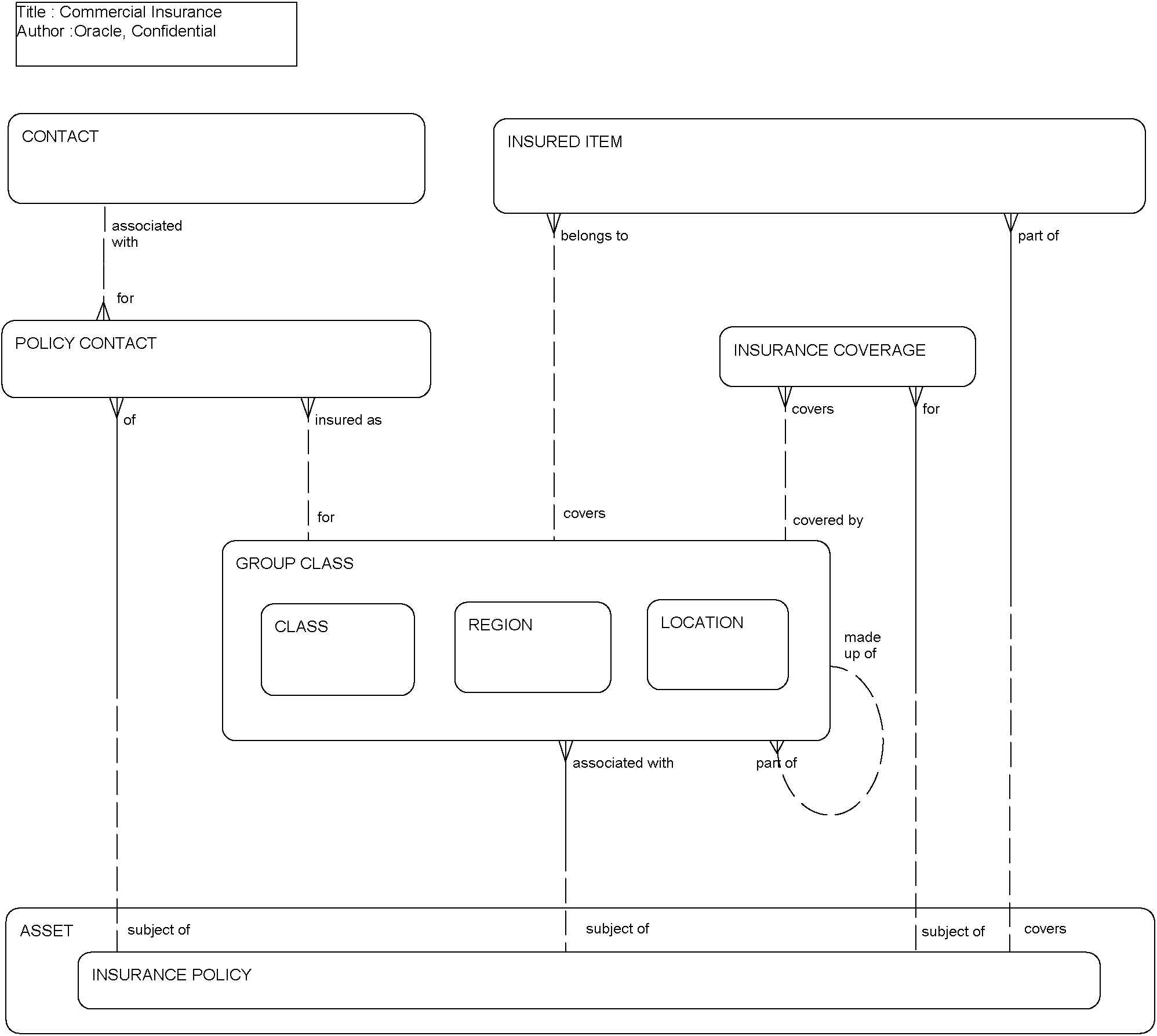

This ERD (see the following figure) illustrates how Siebel Financial Services supports generation of group classes of insured items covered by an insurance policy. An insured item can belong to either one or two group classes, including a region (such as a state), a location, (such as physical location), or a class (such as an employee). Insurance coverage can be associated with either one or two group classes.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Asset	S_ASSET
Contact	S_CONTACT,S_PARTY
Group Class	S_FN_GRP_CLASS
Insurance Coverage	S_APPLD_CVRG
Insured Item	S_INS_ITEM
Policy Contact	S_ASSET_CON
