Communications, Media, and Energy (CME) Account

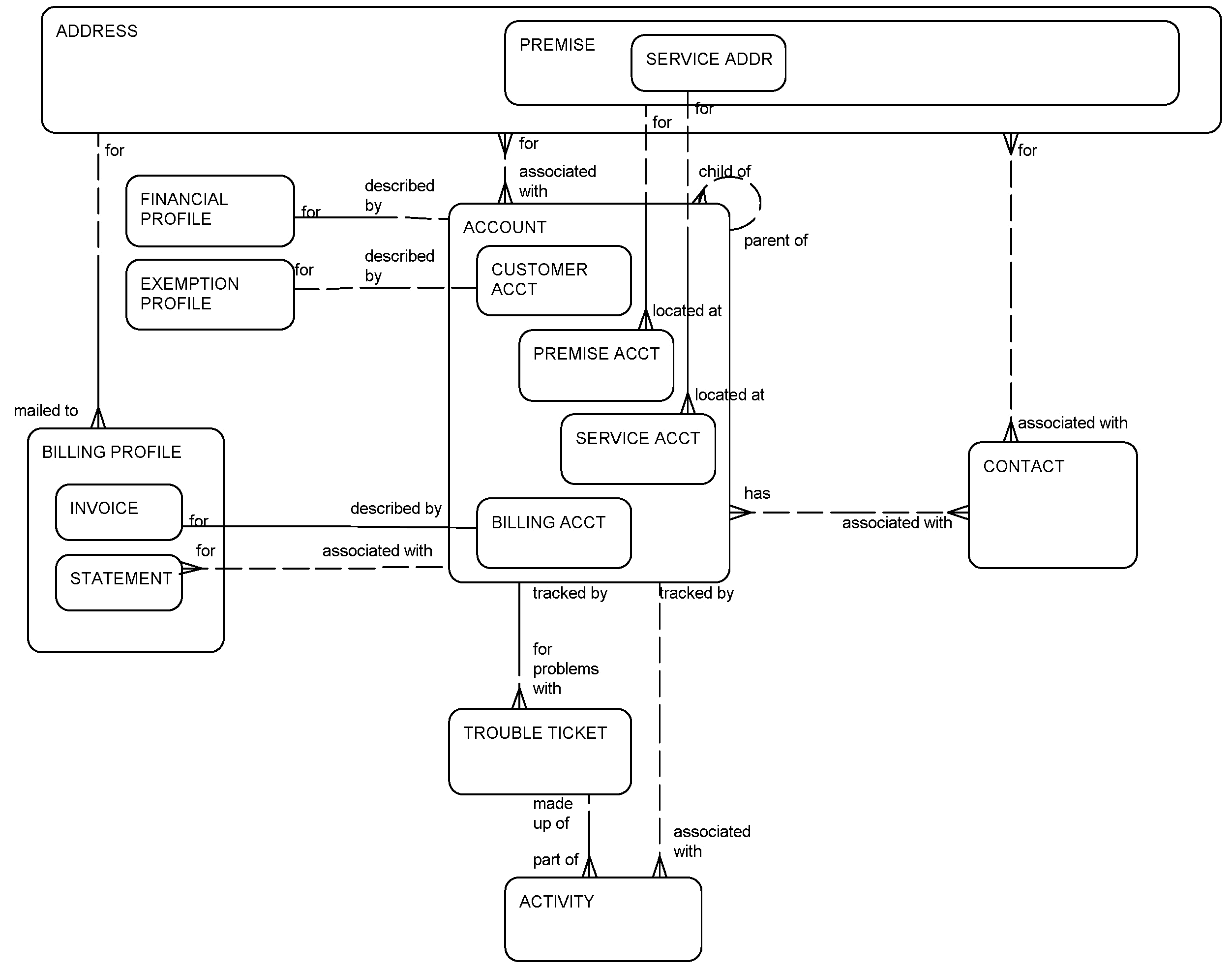

This ERD (see the following figure) illustrates how complex hierarchies of accounts are maintained in Siebel Communications and Siebel Energy. Profiles are the way an account is further described. Addresses are associated with contacts and accounts. Addresses are unique in the database. Trouble tickets (service requests) and activities can be associated at the accounts level.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Account	S_ORG_EXT
Activity	S_EVT_ACT
Address	S_ADDR_PER
Billing Profile	S_INV_PROF
Contact	S_CONTACT, S_PARTY
Exemption Profile	S_SUBSIDY
Financial Profile	S_FINAN_PROF
Trouble Ticket	S_SRV_REQ
