Compensation Planning Administration

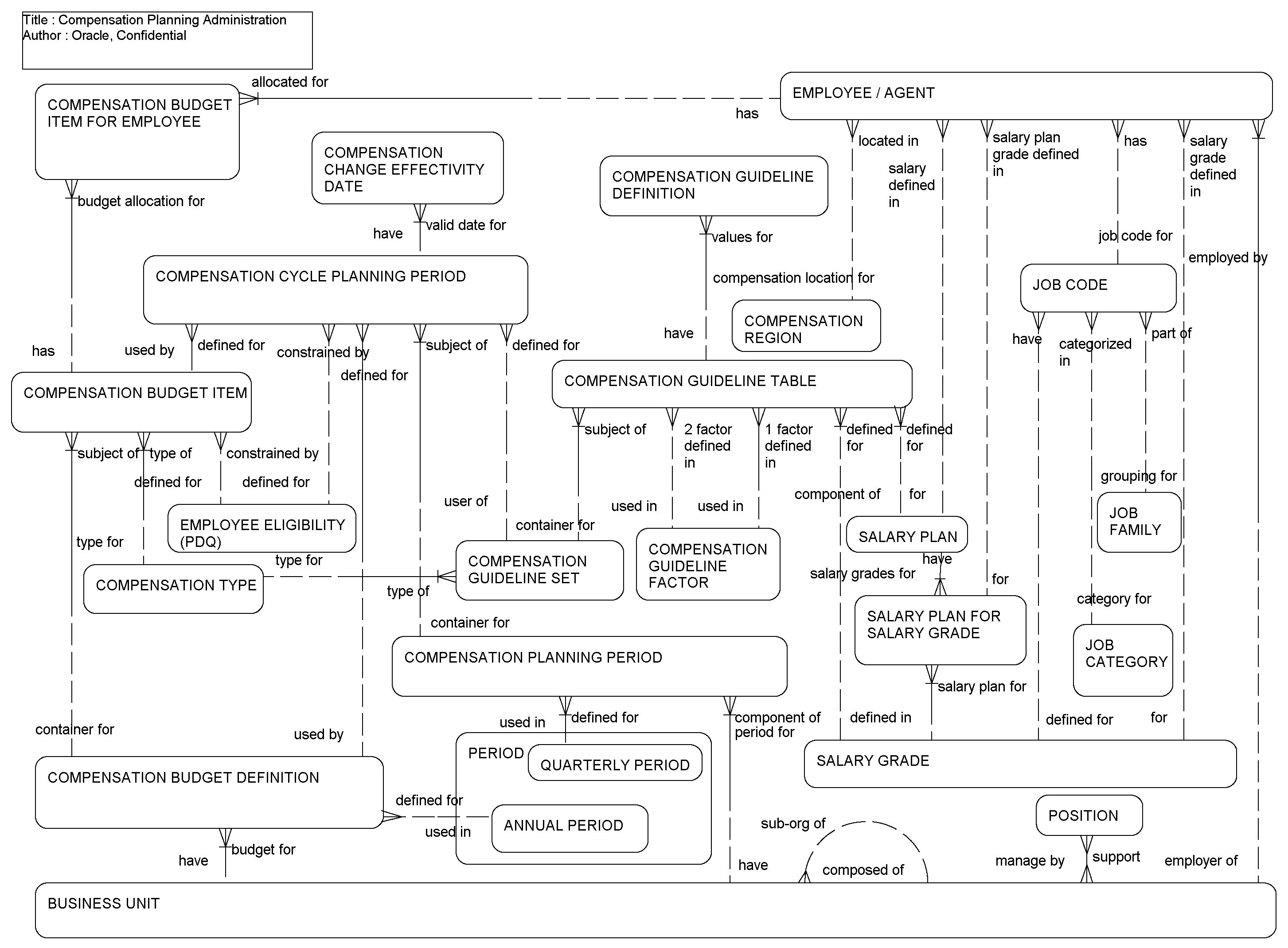

This ERD (see the following figure) illustrates the administration activities of compensation planning, which involve setting up salary structures such as salary plan, salary grades, and job codes. In addition to salary structures, an organization sets up compensation budgets, compensation types such as merit increase, bonus, promotion, and stock options, planning periods, budget calculation and eligibility rules, guidelines and calculation of budget allocations for employees.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Business Unit	S_BU
Compensation Budget Definition	S_CP_BDGT
Compensation Budget Item	S_CP_BDGT_ITEM
Compensation Budget Item For Employee	S_CP_BDGT_EMP
Compensation Cycle Planning Period	S_CP_PD_BDGTITM
Compensation Guideline Definition	S_CP_GDLN
Compensation Guideline Factor	LOV
Compensation Guideline Set	S_CP_GDLN_SET
Compensation Guideline Table	S_CP_GDLN_TBL
Compensation Planning Period	S_CP_PERIOD
Compensation Region	S_CP_REGN
Compensation Type	LOV
Compensation Valid Effectivity Date	S_CP_EFF_DATE
Employee Eligibility	S_APP_QUERY (PDQ)
Employee/Agent	S_EMP_PER
Job Category	LOV
Job Code	S_JOB
Job Family	S_JOB_FAMILY
Job Profile	S_JOB_PRFL
Period	S_PERIOD
Salary Grade	S_SALARY_GRADE, S_SALPLAN_GRADE
Salary Plan	S_SALARY_PLAN
