Dealer Sales and Service Promotion

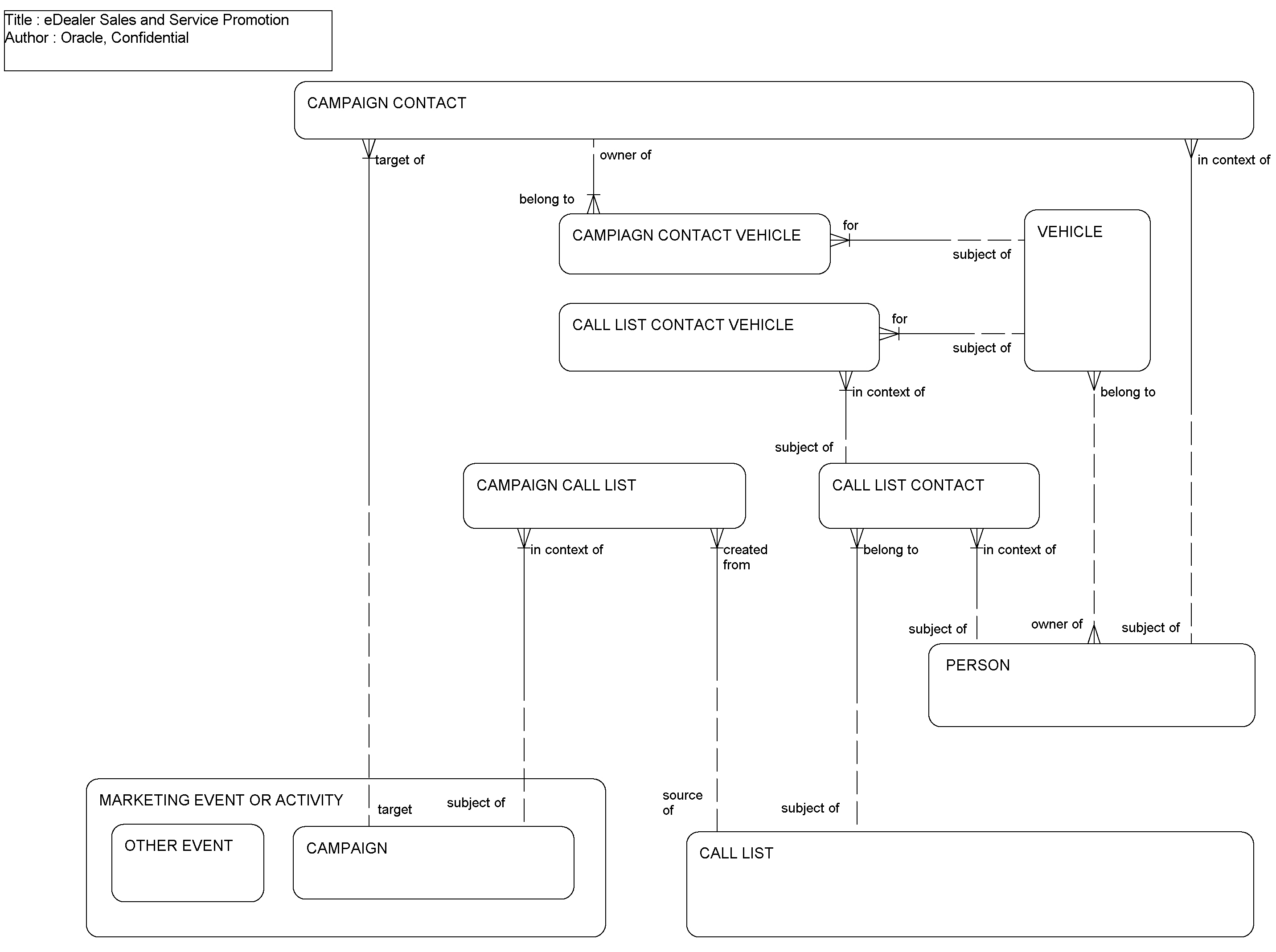

This ERD (see the following figure) illustrates how a call list can be created by searching on specific attributes of vehicle, person, sales history, or service history. A person might qualify to be on the call list by virtue of possessing a specific vehicle, having the car serviced with the dealership in the past (the next service might be due), and so on. The dealer can start a campaign for sales or service specials and include one or more call lists to be targeted through the campaign.

The following table lists the entities in this ERD and their corresponding tables.

Entity	Table
Call List	S_CALL_LST
Call List Contact	S_CALL_LST_CON
Call List Contact Vehicle	S_C_LST_CON_AST
Campaign	S_SRC
Campaign Call List	S_CAMP_CALL_LST
Campaign Contact	S_CAMP_CON
Campaign Contact Vehicle	S_CAMP_CON_AST
Marketing Event or Activity	S_SRC
Person	S_CONTACT, S_CONTACT_ATX
Vehicle	S_ASSET, S_ASSET_ATX
